Digital Conference Microphone Unit

  1. Home
  2. Products
  3. Conference System
  4. Digital Conference System
  5. Digital Conference Microphone Unit

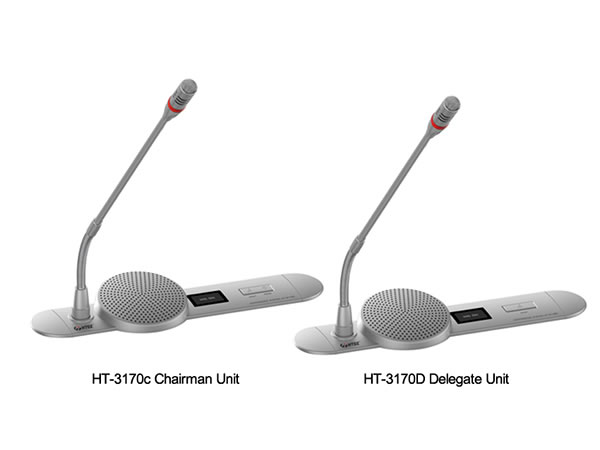

Technical Specifications of the HT-3170c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 266×85×109(mm)
Installation dimension: 212×52(mm)
Length of gooseneck: 420mm
N.W: 1kg
Support discuss and video
Built-in inner speaker & LCD
Chairman with priority button

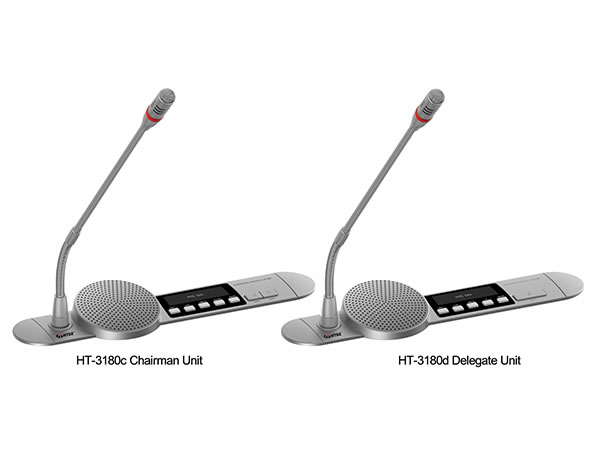

Technical Specifications of the HT-3180c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 295×85×109(mm)
Installation dimension: 241×52(mm)
Length of gooseneck: 420mm
N.W: 1kg
Support discuss and video
Built-in inner speaker & LCD
Chairman with priority button

Technical Specifications of the HT-7000Ac/Ad Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 230×110×70(mm)
Installation dimension: 201×98(mm)
Length of gooseneck: 420mm
N.W: 0.7kg
Support discuss and video
Built-in inner speaker
Chairman with priority button

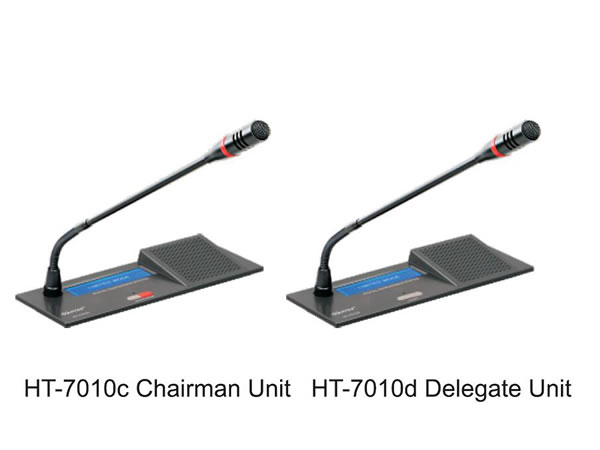

Technical Specifications of the HT-7010c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 256×90×60(mm)
Installation dimension: 227×86(mm)
Length of gooseneck: 420mm
N.W: 0.7kg
Support discuss and video
Built-in inner speaker & LCD
Chairman with priority button

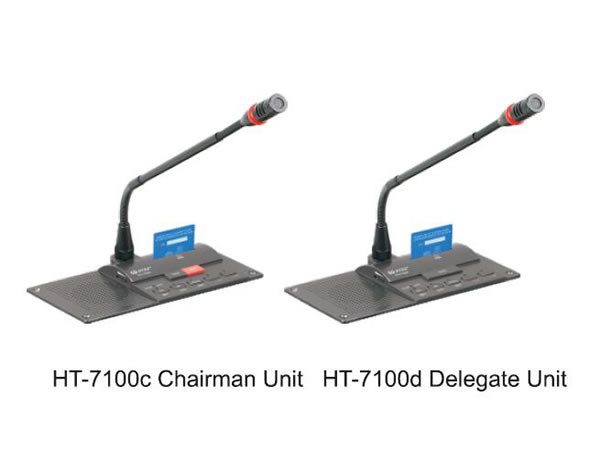

Technical Specifications of the HT-7100c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 230×110×70(mm)
Installation dimension: 200×95(mm)
Length of gooseneck: 390mm
N.W: 0.7kg
Support discuss, video and voting
IC card/key press sign in option
Built-in inner speaker
Chairman with priority button

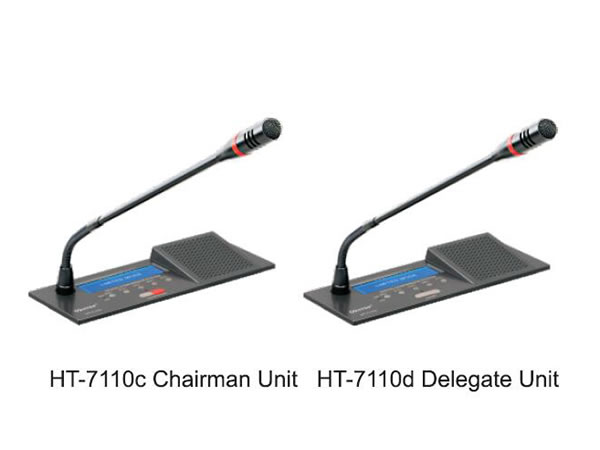

Technical Specifications of the HT-7110c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 256×90×60(mm)
Installation dimension: 227×86(mm)
Length of gooseneck: 420mm
N.W: 0.7kg
Support discuss and video & voting
Built-in inner speaker & LCD
Chairman with priority button

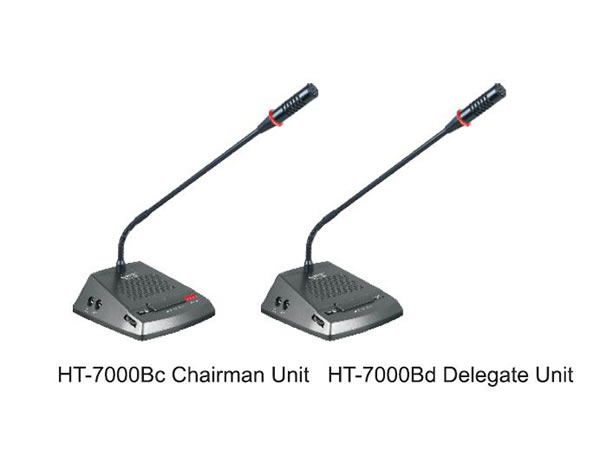

Technical Specifications of the HT-7000Bc/Bd Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 150×135×53(mm)
Length of gooseneck: 390mm
N.W: 0.7kg
Support discuss and video
Built-in inner speaker
Chairman with priority button

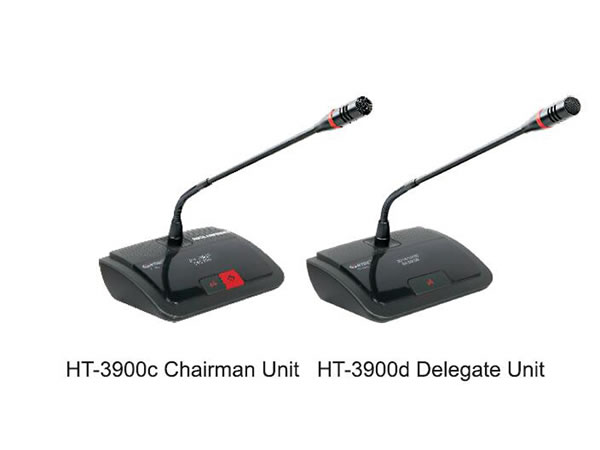

Technical Specifications of the HT-3900c/d Digital Conference Microphone Unit

Sensitivity: -44 dB±2dB
Dimension: 207×117×60(mm)
Length of gooseneck: 420mm
N.W: 0.6kg
Support discuss and video
Support OLED display and timing
Chairman with priority button

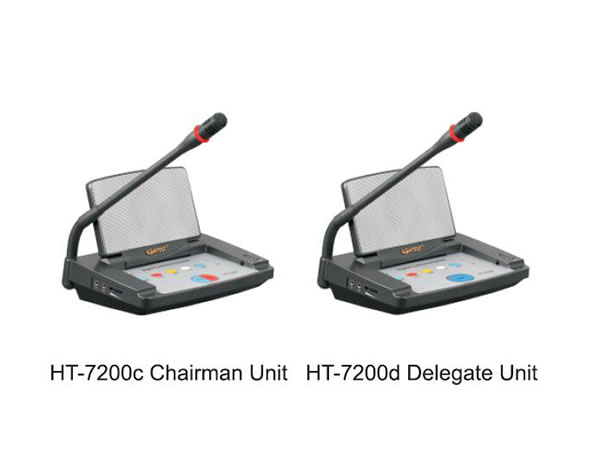

Technical Specifications of the HT-7200c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 245×145×55(mm)
Length of gooseneck: 350mm
N.W: 1.2kg
Support discuss, video and voting
Built-in inner speaker
Chairman with priority button

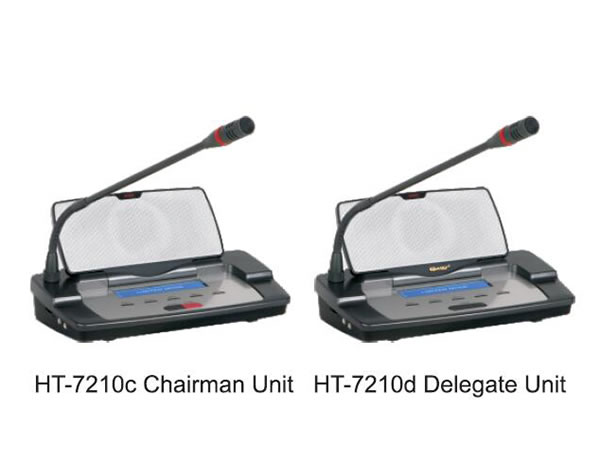

Technical Specifications of the HT-7210c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 245×140×48(mm)
Length of gooseneck: 420mm
N.W: 1kg
Support discuss, video and voting
Built-in inner speaker & LCD
Chairman with priority button

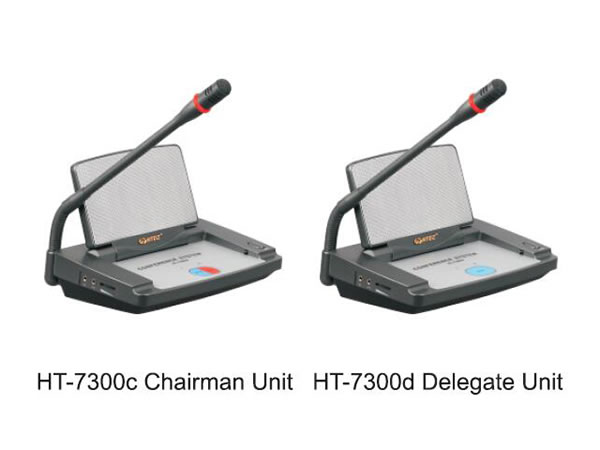

Technical Specifications of the HT-7300c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 245×145×55(mm)
Length of gooseneck: 350mm
N.W: 1.2kg
Support discuss and video
Built-in inner speaker
Chairman with priority button

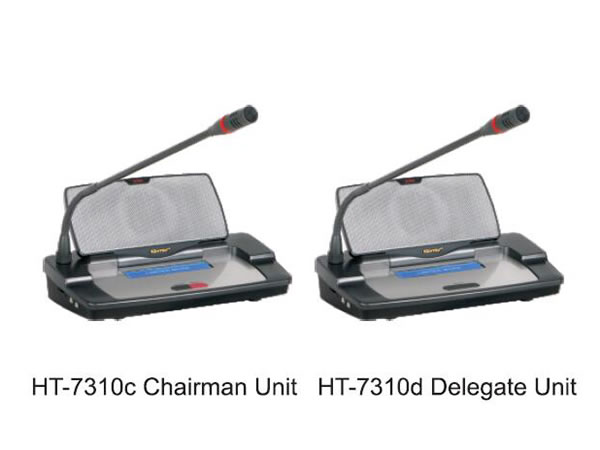

Technical Specifications of the HT-7310c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 245×140×48(mm)
Length of gooseneck: 420mm
N.W: 1kg
Support discuss and video
Built-in inner speaker & LCD
Chairman with priority button

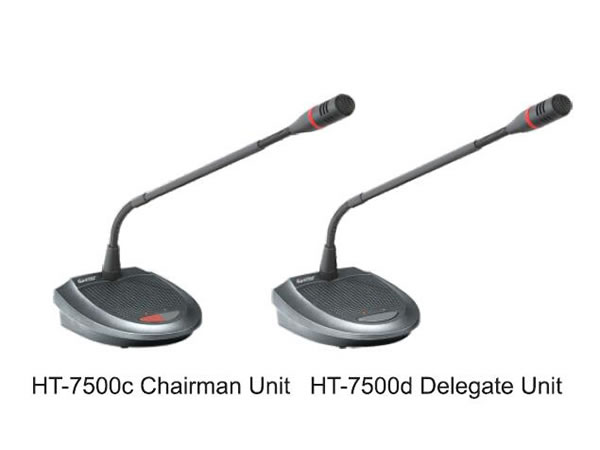

Technical Specifications of the HT-7500c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 165×135×60(mm)
Length of gooseneck: 390mm
N.W: 0.8kg
Support discuss and video
Built-in inner speaker
Chairman with priority button

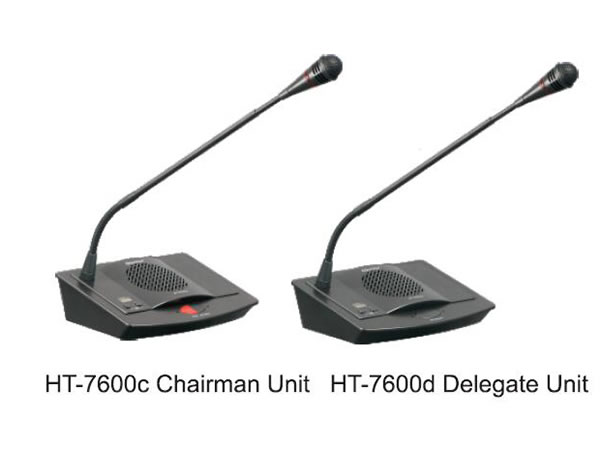

Technical Specifications of the HT-7600c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 205×150×55(mm)
Length of gooseneck: 420mm
N.W: 0.9kg
Support discuss and video
Built-in inner speaker
Chairman with priority button

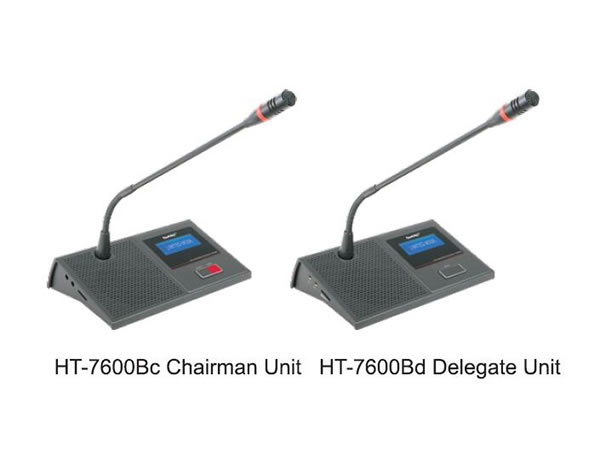

Technical Specifications of the HT-7600Bc/Bd Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 205×117×55(mm)
Length of gooseneck: 420mm
N.W: 0.9kg
Support discuss and video
Built-in inner speaker
Chairman with priority button

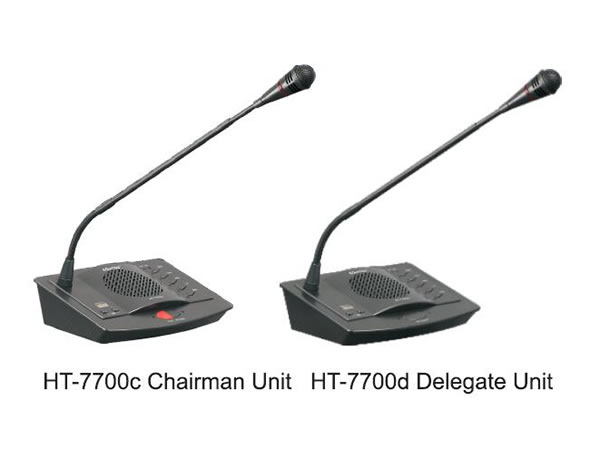

Technical Specifications of the HT-7700c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 205×150×55(mm)
Length of gooseneck: 420mm
N.W: 0.9kg
Support discuss, video and voting
Key press sign in
Built-in inner speaker
Chairman with priority button

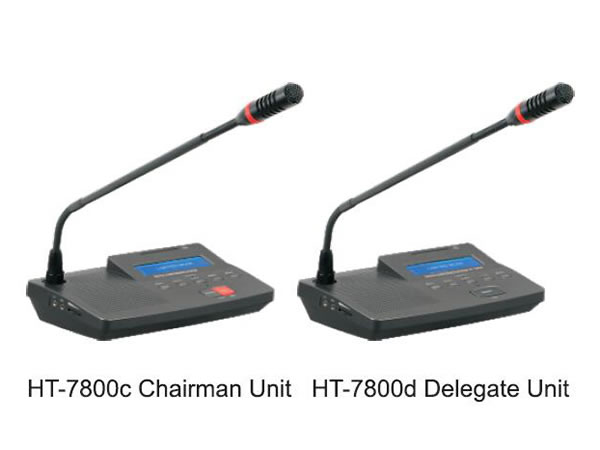

Technical Specifications of the HT-7800c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 245×150×60(mm)
Length of gooseneck: 390mm
N.W: 0.7kg
Support discuss, video and voting
IC card/key press sign in option
Built-in inner speaker and LCD
Chairman with priority button

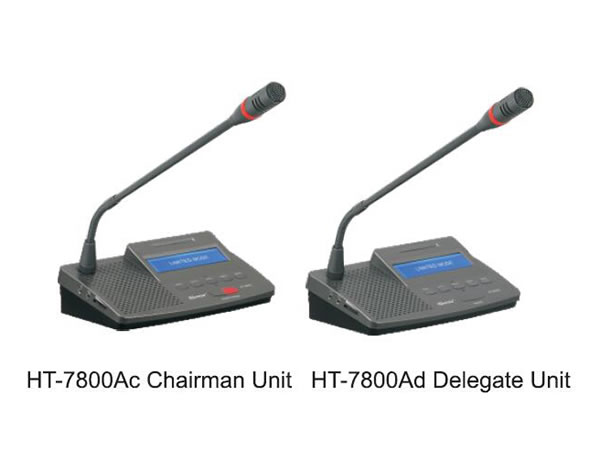

Technical Specifications of the HT-7800Ac/Ad Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 207×117×60(mm)
Length of gooseneck: 420mm
N.W: 1kg
Support discuss, video and voting
IC card/key press sign in option
Built-in inner speaker and LCD
Chairman with priority button

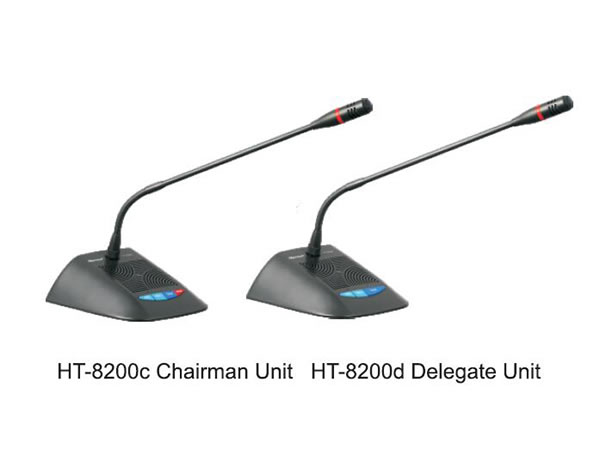

Technical Specifications of the HT-8200c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 130×160×50(mm)
Length of gooseneck: 420mm
N.W: 0.8kg
Support discuss and video
Built-in inner speaker
Chairman with priority button

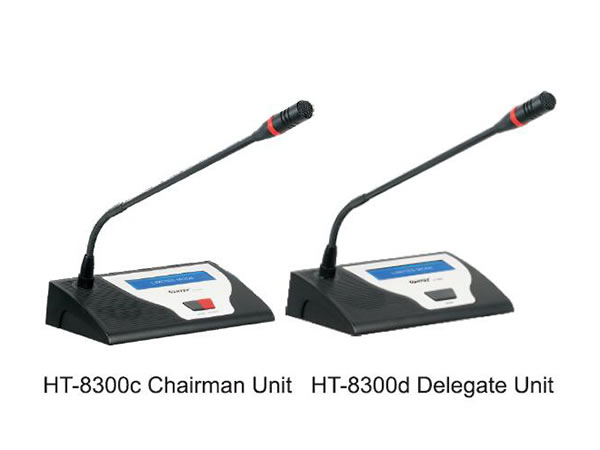

Technical Specifications of the HT-8300c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 200×114x45(mm)
Length of gooseneck: 420mm
N.W: 1kg
Support discuss and video
Built-in inner speaker and LCD
Chairman with priority button

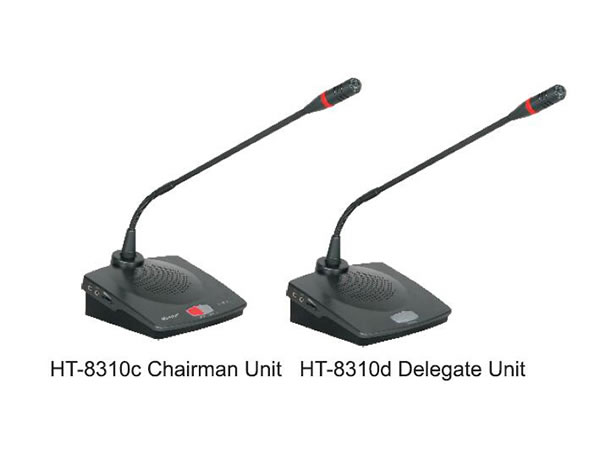

Technical Specifications of the HT-8310c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 245×150×60(mm)
Length of gooseneck: 390mm
N.W: 1kg
Support discuss and video
IC card/key press sign in option
Built-in inner speaker and LCD
Chairman with priority button

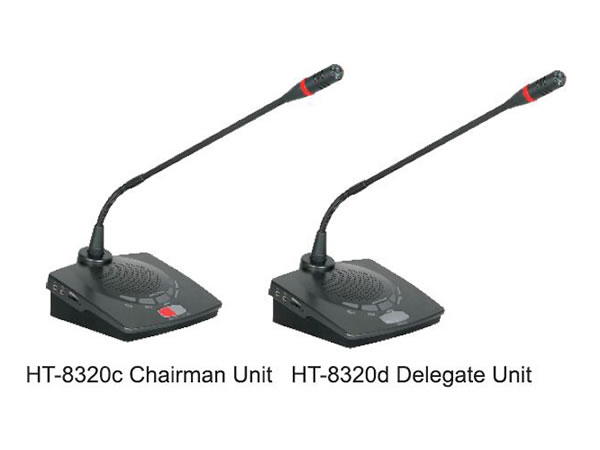

Technical Specifications of the HT-8320c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 150×170x67(mm)
Length of gooseneck: 390mm
N.W: 1kg
Support discuss, video and voting
Built-in inner speaker
Chairman with priority button

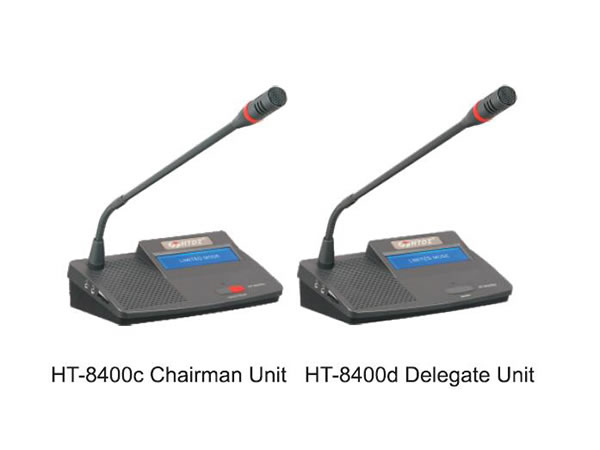

Technical Specifications of the HT-8400/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 245×150×60(mm)
Length of gooseneck: 390mm
N.W: 1kg
Support discuss and video
IC card/key press sign in option
Built-in inner speaker and LCD
Chairman with priority button

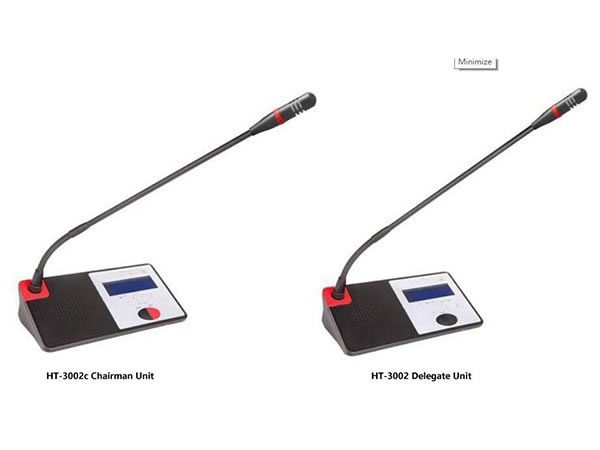

Technical Specifications of the HT-3002c/d Digital Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 230×132×64(mm)
Length of gooseneck: 420mm
N.W: 1.2kg
Support discuss and video
Built-in inner speaker and LCD
Chairman with priority button

We are a digital conference microphone unit manufacturer based in China. We offer digital conference system, IR wireless conference system, microphone mixer, wireless voting system, and so on.
