Boundary Microphone

  1. Home
  2. Products
  3. Microphone
  4. Boundary Microphone

Description

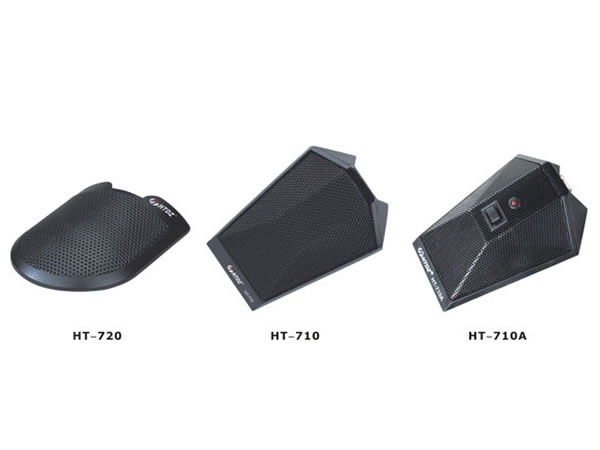

The HTDZ boundary microphone is a wide-range condenser microphone with cardioid polar pattern. It is designed for surface-mounted applications such as high-quality sound reinforcement, conferencing, professional recording, television, and other demanding sound pickup situations.

Technical Specifications of the Boundary Microphone

Model No. HT-710 HT-720 HT-710A
Capsule Type Condenser Condenser Condenser
Frequency Response 20Hz-20kHz 20Hz-20kHz 30Hz-20kHz
Polar Pattern Super Cardioid Super Cardioid Super Cardioid
Output Impedance(Ohm) 75 75 75
Sensitivity (±2dB) -36dB -36dB -36dB
Power Supply Phantom Power 48V Phantom Power 48V Phantom Power 48V
N.W. 115g 115g 115g
Sound Pick-up Distance 5m 5m 5m
Dimension (W ×D×H)mm 75×102×28 69×89×18 75×102×28
Output/Indicator Balance Balance Balance Base Indicator

We are a specialized boundary microphone manufacturer based in China. We offer a wide variety of products, including microphone mixer, VHF wireless microphone, wireless voting system, digital video conference system, and more.
