Shotgun Microphone

  1. Home
  2. Products
  3. Microphone
  4. Shotgun Microphone

The shotgun microphone has been specially created to meet the pickup demands of broadcasting, film/TV sound, professional recording, wildlife recording and theater sound reinforcement. It is particularly useful for miking dynamic action in film/TV audio as well as in "spot" miking techniques in the music studio or theater.

Technical Specifications of the Shotgun Microphone

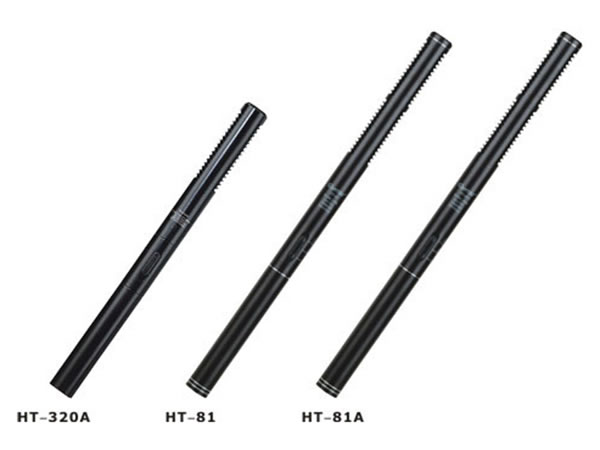

Model No. HT-320A HT-81 HT-81A
Capsule Type Condenser Condenser Condenser
Frequency Response 100Hz-16kHz 100Hz-16kHz 100Hz-20kHz
Polar Pattern Uni-Directional Uni-Directional Uni-Directional
Output Impedance Long Distance 1k Ohm 1k Ohm 1k Ohm
Output Impedance Short Distance 2.3k Ohm 2.3k Ohm 2.3k Ohm
Sensitivity Long Distance -38dB -38dB -38dB
Sensitivity Short Distance -45dB -45dB -45dB
Power Supply DC1.5V DC1.5V DC1.5V/ Phantom Power 48V
N.W. 0.10kg 0.12kg 0.12kg
Sound Pick-up Distance 3m 3m 3m
Battery Working Time (Hour) 26 26 26
Dimension mm Diameter 22 Length 273 Diameter 22 Length 360 Diameter 22 Length 360
Output/Indicator Unbalance Unbalance Balance

HaiTian Electronic is a China-based shotgun microphone manufacturer and supplier. We offer meeting microphone, IR wireless conference system, wireless voting system, video tracking system, and much more.
