Meeting Microphone

  1. Home
  2. Products
  3. Microphone
  4. Meeting Microphone

Excellent sound quality in conjunction with a robust design characterizes HTDZ meeting microphones. HTDZ offers a varied range of microphones for all applications: gooseneck, acoustical boundary and desktop microphones, etc. and the range covers all situations in which microphones are implemented. All microphones designed with the latest Anti-EMI/RFI technologies.

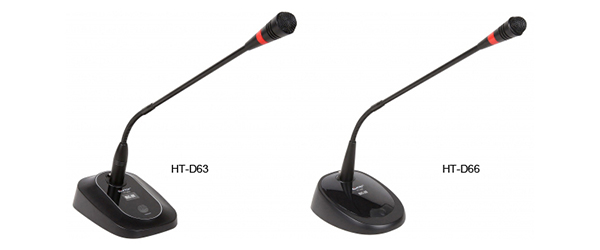

Technical Specifications of the HT-D63, HT-D66 Meeting Microphone

Model No. HT-D63 HT-D66
Capsule Type Condenser Condenser
Frequency Response 30Hz-20KHz 30Hz-20KHz
Polar Pattern Cardioid Cardioid
Output Impedance (Ohm) 200-Unbalanced 200-Unbalanced
Sensitivity (±2dB) -42dB -42dB
Power Supply Phantom 48V/DC3V Phantom 48V/DC3V
Mic Length (mm) 390 390
N.W. 0.6kg 0.6kg
Base Dimension (W×D×H) mm 114×168×57 116×145×46
Indicator Base OLED/Mic LED/Touch ON/OFF Base OLED/Mic LED
S/N 65dB 65dB

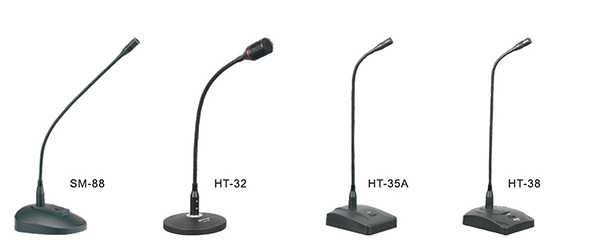

Technical Specifications of the SM-88, HT-32, HT-35A, HT-38 Meeting Microphone

Model No. SM-88 HT-32 HT-35A HT-38
Capsule Type Condenser Dynamic Condenser Condenser
Frequency Response 40Hz-16KHz 60Hz-16KHz 100Hz-16KHz 100Hz-16KHz
Polar Pattern Cardioid Cardioid Cardioid Cardioid
Output Impedance (Ohm) 200-Unbalanced 600-Balanced 200-Unbalanced 200-Unbalanced
Sensitivity (±2dB) -42dB -52dB -42dB -42dB
Power Supply DC3V
DC3V DC3V
Mic Length (mm) 415 483 415 415
N.W. 0.41kg 1.08kg 0.62kg 0.62kg
Base Dimension (WxDxH) mm 125x134x38 Diameter 130 110x130x34 110x130x34
Indicator Base Indicator
Base Indicator Base Indicator

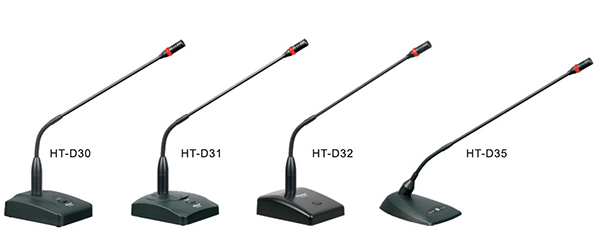

Technical Specifications of the HT-D30, HT-D31, HT-D32, HT-D35 Meeting Microphone

Model No. HT-D30 HT-D31 HT-D32 HT-D35
Capsule Type Condenser Condenser Condenser Condenser
Frequency Response 40Hz-16kHz 40Hz-16kHz 40Hz-16kHz 40Hz-16kHz
Polar Pattern Hypercardioid Hypercardioid Hypercardioid Hypercardioid
Output Impedance (Ohm) 200-Unbalanced 200-Unbalanced 200-Unbalanced 200-Unbalanced
Sensitivity (±2dB) -40dB -40dB -40dB -40dB
Power Supply DC3V DC3V DC3V DC3V
Mic Length (mm) 430 430 430 465
N.W. 0.65kg 0.64kg 0.62kg 0.45kg
Base Dimension (WxDxH) mm 110x130x34 110x130x34 102x130x40 100x155x35
Indicator Base Indicator/Mic LED Base Indicator/Mic LED Base Indicator/Mic LED Base Indicator/Mic LED

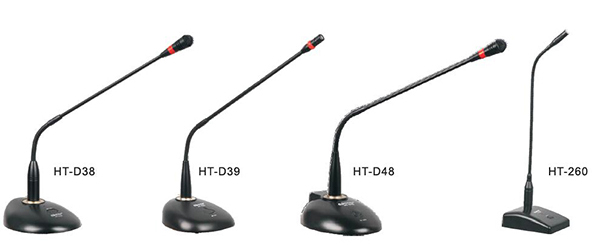

Technical Specifications of the HT-D38, HT-D39, HT-D48, HT-260 Meeting Microphone

Model No. HT-D38 HT-D39 HT-D48 HT-260
Capsule Type Condenser Condenser Condenser Condenser
Frequency Response 40Hz-16kHz 40Hz-16kHz 20Hz-18kHz 100Hz-16kHz
Polar Pattern Hypercardioid Cardioid Cardioid Cardioid
Output Impedance (Ohm) 75 Unbalanced 200-Unbalanced 75-Unbalanced 200-Unbalanced
Sensitivity (±2dB) -40dB -40dB -40dB -42dB
Power Supply Phantom 48V/DC3V DC3V Phantom 48V/DC3V DC3V
Mic Length (mm) 445 430 410 450
N.W. 0.73kg 0.58kg 0.78kg 0.64kg
Base Dimension (WxDxH)mm 115x140x30 125x135x41 114x140x37 102x130x40
Indicator Base Indicator/Mic LED Base Indicator/Mic LED Base Indicator/Mic LED Base Indicator

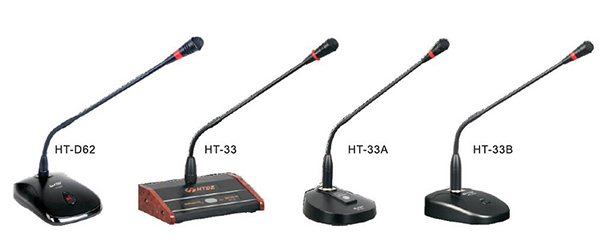

Technical Specifications of the HT-D62, HT-33, HT-33A, HT-33B Meeting Microphone

Model No. HT-D62 HT-33 (Chime) HT-33A (Chime) HT-33B (Chime)
Capsule Type Condenser Condenser Condenser Condenser
Frequency Response 20Hz-20kHz 40Hz-16kHz 40Hz-16kHz 40Hz-16kHz
Polar Pattern Cardioid Cardioid Cardioid Cardioid
Output Impedance (Ohm) 200-Balanced 200-Unbalanced 200-Unbalanced 200-Unbalanced
Sensitivity (±2dB) -42dB -45dB -38dB -38dB
Power Supply Phantom 48V/DC 3V DC9V/AC 220V DC9V DC9V/AC 220V
Mic Length (mm) 390 390 420 420
N.W. 0.6kg 0.72 0.67kg 0.67kg
Base Dimension (WxDxH)mm 114x160x57 183x112x43 126x150x39 126x150x39
Output/Indicator Base Indicator/Mic LED Base Indicator/Mic LED Base Indicator/Mic LED Base Indicator/Mic LED

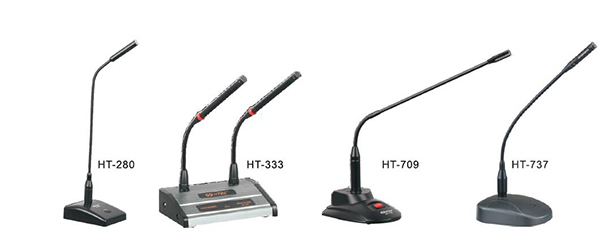

Technical Specifications of the HT-280, HT-333, HT-709, HT-737 Meeting Microphone

Model No. HT-280 HT-333 (Auto-on/off) HT-709 HT-737
Capsule Type Condenser Condenser Condenser Condenser
Frequency Response 40Hz-16kHz 40Hz-16kHz 40Hz-16kHz 40Hz-16kHz
Polar Pattern Cardioid Hypercardioid Cardioid Cardioid
Output Impedance (Ohm) 200-Unbalanced 200-Unbalanced 200-Balanced 200-Unbalanced
Sensitivity (±2dB) -38dB -38dB -40dB -38dB
Power Supply DC3V Phantom 48V/DC9V Phantom 48V/DC9V DC3V
Mic Length (mm) 460 310 460 410
N.W. 0.66kg 0.74kg 0.88kg 0.67kg
Base Dimension (WxDxH) mm 102x130x40 183x112x43 110x150x33 126x150x39
Indicator Base Indicator Base Indicator/Mic LED Base Indicator Base Indicator

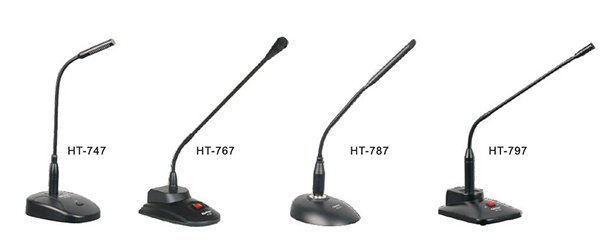

Technical Specifications of the HT-747, HT-767, HT-787, HT-797 Meeting Microphone

Model No. HT-747 HT-767 HT-787 HT-797
Capsule Type Condenser Condenser Condenser Condenser
Frequency Response 40Hz-16kHz 40Hz-16kHz 40Hz-16kHz 40Hz-16kHz
Polar Pattern Hypercardioid Cardioid Cardioid Cardioid
Output Impedance (Ohm) 200-Unbalanced 200-Balanced 200-Balanced 200-Balanced
Sensitivity (±2dB) -38dB -38dB -38dB -38dB
Power Supply DC9V Phantom 48V/DC3V Phantom 48V Phantom 48V
Microphone Length (mm) 400 470 435 390
N.W. 0.67kg 0.65kg 1.47kg 1.50kg
Base Dimension (WxDxH)mm 126x150x39 110x150x33 126x155x33 112x161x29
Indicator Base Indicator Base Indicator Base Indicator Base Indicator

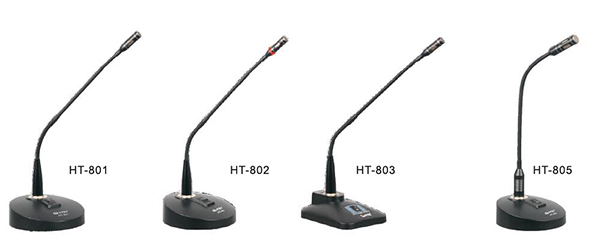

Technical Specifications of the HT-801, HT-802, HT-803, HT-805 Meeting Microphone

Model No. HT-801 HT-802 HT-803 HT-805
Capsule Type Condenser Condenser Condenser Condenser
Frequency Response 40Hz-16kHz 40Hz-16kHz 40Hz-20kHz 40Hz-16kHz
Polar Pattern Cardioid Cardioid Cardioid Cardioid
Output Impedance(Ohm) 200-Unbalanced 200-Unbalanced 200-Unbalanced 200-Unbalanced
Sensitivity (±2dB) -38dB -38dB -38dB -38dB
Power Supply DC3V DC3V DC3V DC3V
Mic Length (mm) 405 410 410 380
N.W. 0.79kg 0.79kg 0.70kg 0.78kg
Base Dimension (WxDxH)mm 140x141x39 140x141x39 110x146x28 140x141x39
Output/Indicator Base Indicator Base Indicator/Mic LED Base Indicator Base Indicator

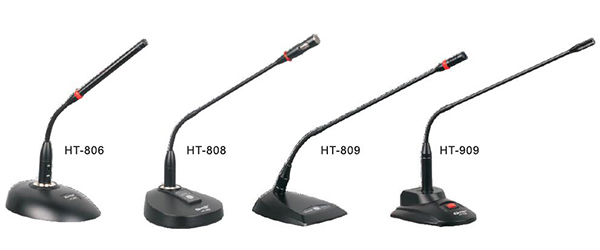

Technical Specifications of the HT-806, HT-808, ht-809, HT-909 Meeting Microphone

Model No. HT-806 HT-808 HT-809 HT-909
Capsule Type Condenser Condenser Condenser Condenser
Frequency Response 40Hz-16kHz 40Hz-16kHz 20Hz-20kHz 20Hz-20kHz
Polar Pattern Cardioid Hypercardioid Cardioid Hypercardioid
Output Impedance(Ohm) 200-Balanced 200-Balanced 75-Balanced 200-Balanced
Sensitivity (±2dB) -38dB -38dB -40dB -40dB
Power Supply Phantom 48V/DC9V Phantom 48V/DC9V Phantom 48V/DC3V Phantom 48V/DC9V
Mic Length (mm) 415 430 445 440
N.W. 1.53kg 0.68kg 0.69kg 0.81kg
Base Dimension (WxDxH)mm 130x155x36 130x145x40 103x155x32 100x144x38
Indicator Base Indicator Mic LED Mic LED Base Indicator

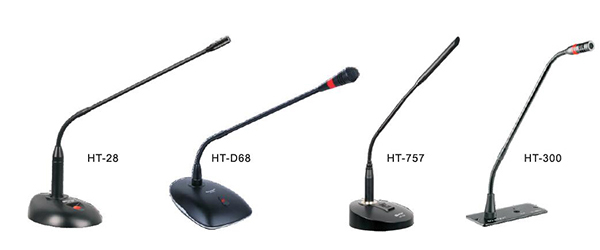

Technical Specifications of the HT-28, HT-D68, HT-757, HT-300 Meeting Microphone

Model No. HT-28 HT-D68 HT-757 HT-300
Capsule Type Condenser Condenser Condenser Condenser
Frequency Response 30Hz-20kHz 20Hz-20kHz 40Hz-16kHz 40Hz-16kHz
Polar Pattern Uni-Directional Cardioid Hypercardioid Hypercardioid
Output Impedance(Ohm) 75-Balanced 200-Balanced 200-Unbalanced 75-Unbalanced
Sensitivity (±2dB) -45dB -42dB -38dB -40dB
Power Supply Phantom 48V Phantom 48V/DC3V DC9V Phantom 48V
Mic Length (mm) 455 390 400 390
N.W. 1.10kg 0.6kg 0.67kg 0.73kg
Base Dimension (WxDxH)mm 115x138x40 116x145x46 126x150x39 130x55x102
Output/Indicator Base Indicator Base Indicator/Mic LED Base Indicator Base Indicator/Mic LED

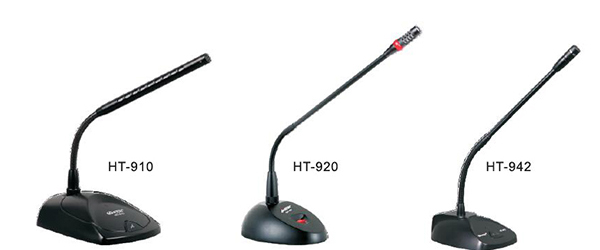

Technical Specifications of the HT-910, HT-920, HT-942 MeetingMicrophone

Model No. HT-910 HT-920 HT-942
Capsule Type Condenser Condenser Condenser
Frequency Response 30Hz-20kHz 30Hz-20kHz 40Hz-18kHz
Polar Pattern Uni-Directional Uni-directional Uni-directional
Output Impedance(Ohm) 75-Balanced 75-Balanced 75-Balanced
Sensitivity (±2dB) -45dB -45dB -45dB
Power Supply Phantom 48V/DC3V Phantom 48V Phantom 48V
Mic Length (mm) 280 410 300
N.W. 0.87kg 1kg 0.6kg
Max Input Level 126dB 128dB 128dB
Base Dimension (WxDxH)mm 94x143x44 95x138x40 81x110x36
Output/Indicator Base Indicator Base Indicator/Mic LED Base Indicator

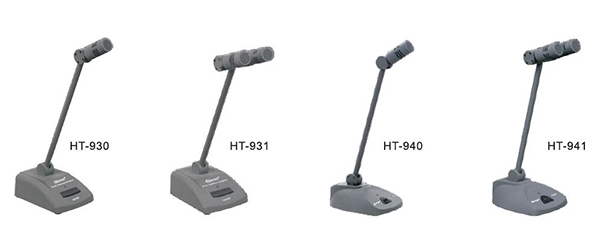

Technical Specifications of the HT-930, HT-931, HT-940, HT-941 Meeting Microphone

Model No. HT-930 HT-931 HT-940 HT-941
Capsule Type Condenser Condenser Condenser Condenser
Frequency Response 40Hz-18kHz 30Hz-20kHz 40Hz-18kHz 40Hz-18kHz
Polar Pattern Hypercardioid Hypercardioid Hypercardioid Hypercardioid
Output Impedance(Ohm) 75-Balanced 75-Balanced 75-Balanced 75-Balanced
Sensitivity (±2dB) -45dB -45dB -45dB -45dB
Power Supply Phantom 48V Phantom 48V Phantom 48V Phantom 48V
Mic Length (mm) 200 200 200 200
N.W. 0.63kg 0.65kg 0.63kg 0.65kg
Max Input Level 135dB 138dB 128dB 128dB
Base Dimension (WxDxH)mm 78x104x34 78x104x34 81x110x36 81x110x36
Output/Indicator Base Indicator Base Indicator Base Indicator Base Indicator

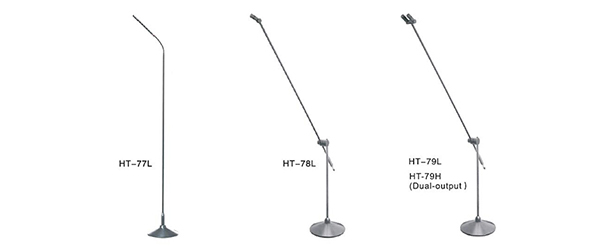

TechnicalSpecifications of the HT-77L,HT-78L, HT-79L Meeting Microphone

Model No. HT-77L HT-78L HT-79L/HT-79H (Dual-output)
Capsule Type Condenser Condenser Dual-Condenser
Frequency Response 30Hz-16kHz 30Hz-16kHz 30Hz-18kHz
Polar Pattern Hypercardioid Hypercardioid Hypercardioid
Output Impedance(Ohm) 75-Balanced, 200-UnBalanced 75-Balanced,200-UnBalanced 75-Balanced, 200-UnBalanced
Sensitivity (±2dB) -43dB -43dB -43dB

For more types, please download the microphone catalogue.

HaiTian Electronic is a meeting microphone manufacturer based in China. We provide a vast range of products, including gooseneck microphone, microphone mixer, wireless voting system, digital video conference system, and so on.
