Pro Mixing Console

The pro mixing console is key to a professional audio system. Using preamplifier as the main part, it can receive multi-channel audio signals of different impedances and levels and can equalize, mix, distribute these signals. As long as you achieve the best SNR and timbre through adjustment, the pro mixing console will complete efficient and quality transmission of audio signals.

Technical Specifications of the HT-F8/2, HT-12/2, HT-F16/2, HT-G124, HT-G8/2

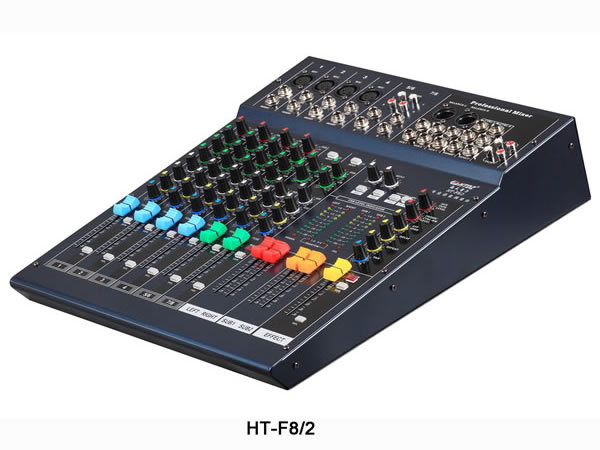

HT-F8/2: 4 channels Mono and 4 channels Mic input, 2 channel stereo input

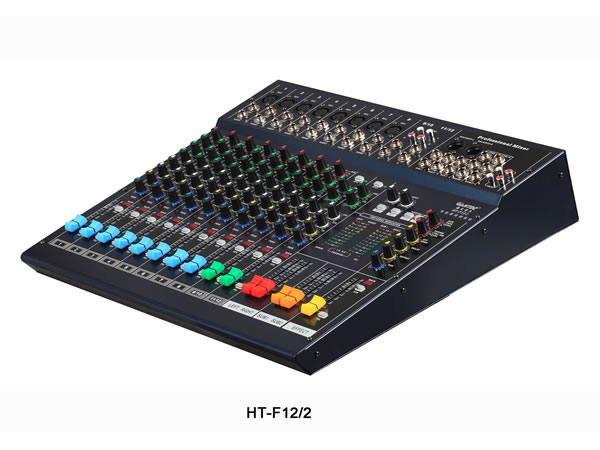

HT-F12/2: 8 channels Mono and 8 channels Mic input, 2 channel stereo input

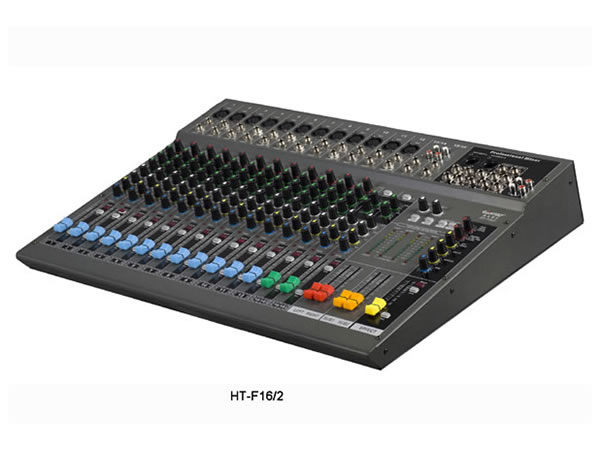

HT-F16/2: 12 channel Mono and 12 channels Mic input, 2 channel stereo input
High-performance Microphone Preamplifiers with Switchable Phantom Power
3-band Channel EQ and High-pass Filters
Built-in Channel Compressors
Smooth 60-millimeter Faders & Illuminated Channel ON Switches
Bright Meters for Visual Level Monitoring

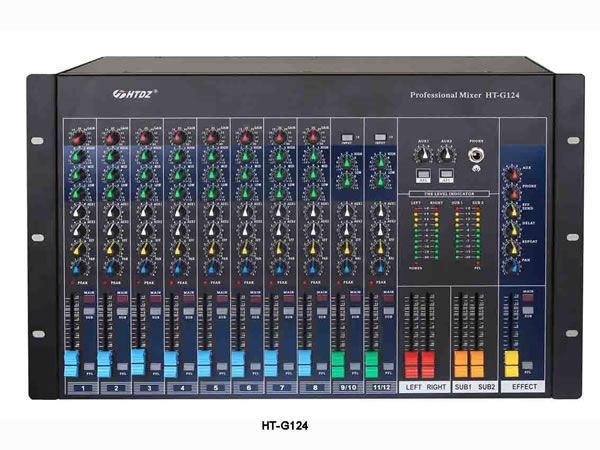

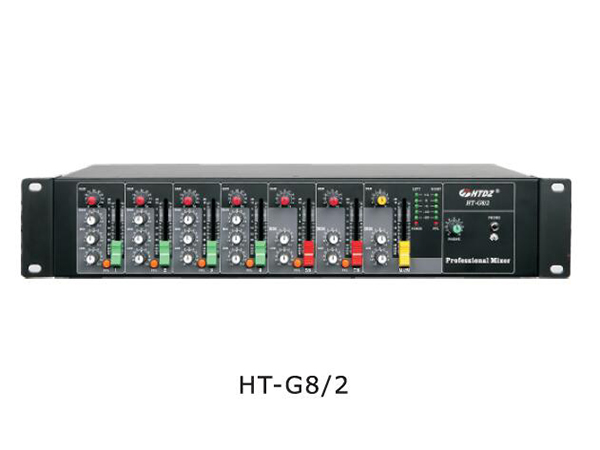

Model HT-F8/2, HT-G8/2 HT-F12/2 HT-F16/2 HT-G124
Max. Output Level 19dBm (1kHz, THD=0.5%) 19dBm (1kHz, THD=0.5%) 19dBm (1kHz, THD=0.5%) 19dBm (1kHz, THD=0.5%)
Residual Noise SNR -75dB -75dB -75dB -75dB
S/N Ratio 71dB 71dB 71dB 71dB
Phones Output 40mW (1kHz, THD-0.5%, 200 Ohm) 40mW (1kHz, THD-0.5%, 200 Ohm) 40mW (1kHz, THD-0.5%, 200 Ohm) 40mW (1kHz, THD-0.5%, 200 Ohm)
EQ LOW: 80Hz ±15dB LOW: 80Hz ±15dB LOW: 80Hz ±15dB LOW: 80Hz ±15dB
MID:2.5kHz ±15dB MID:2.5kHz ±15dB MID:2.5kHz ±15dB MID:2.5kHz ±15dB
HIGH: 12kHz ±15dB HIGH: 12kHz ±15dB HIGH: 12kHz ±15dB HIGH: 12kHz ±15dB
Gain Control Mono: -55dB~0dB Mono: -55dB~0dB Mono: -55dB~0dB Mono: -55dB~0dB
Stereo: -10Db~0dB Stereo: -10Db~0dB Stereo: -10Db~0dB Stereo: -10Db~0dB
Frequency Response 20Hz~20kHz +1.0, -3dB 20Hz~20kHz +1.0, -3dB 20Hz~20kHz +1.0, -3dB 20Hz~20kHz +1.0, -3dB
T.H.D Less than 0.05 (1kHz,0.775V) Less than 0.05 (1kHz,0.775V) Less than 0.05 (1kHz,0.775V) Less than 0.05 (1kHz,0.775V)
Power consumption 25W 35W 45W 35W
Base Dimension (W×D×H) mm 400x400x45 443x400x45 560x400x90 437x200x300
N.W 4.41 kg 5.57 kg 7 kg 6 kg

HaiTian Electronic is a China-based Pro mixing console manufacturer and supplier. Our company also provides Pro speaker, IR wireless conference system, microphone mixer, IR wireless language distribution system, and other related products.
