Conference Microphone Unit

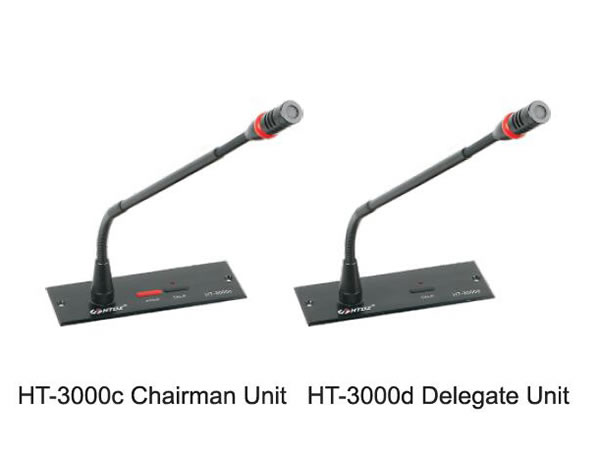

Technical Specifications of the HT-3000c/d Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 130×55×105(mm)
Installation dimension: 105×40(mm)
Length of gooseneck: 420mm
N.W: 0.6kg
Support discuss and video
Chairman with priority button

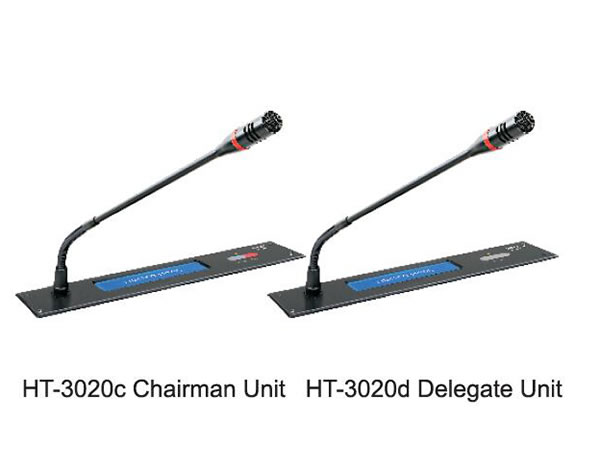

Technical Specifications of the HT-3020c/d Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 245×48×140(mm)
Installation dimension: 207×75(mm)
Length of gooseneck: 420mm
N.W: 0.8kg
Support discuss, video and LCD display
Chairman with priority button

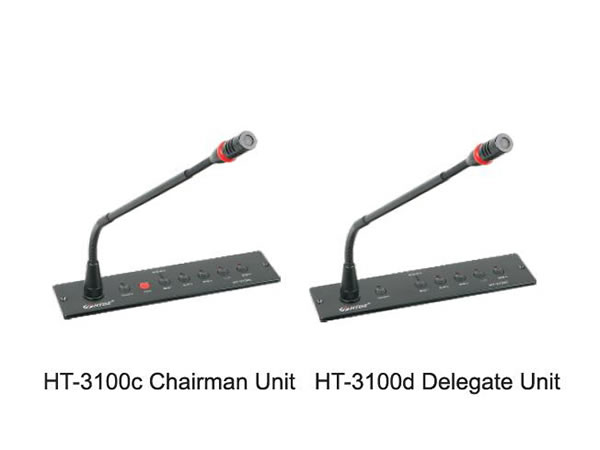

Technical Specifications of the HT-3100c/d Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 215×55×105(mm)
Installation dimension: 191×40(mm)
Length of gooseneck: 420mm
N.W: 0.9kg
Support discuss, video and voting
Chairman with priority button

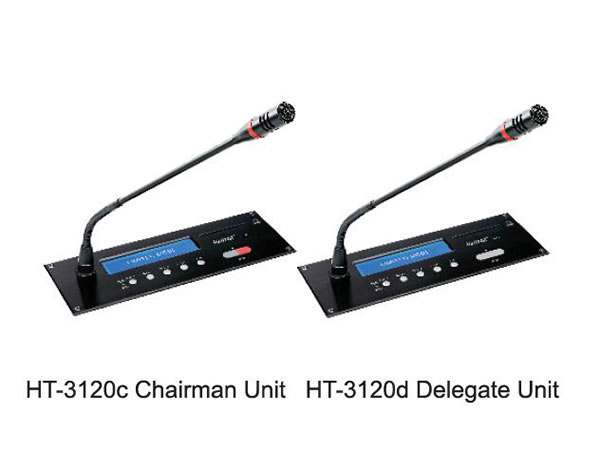

Technical Specifications of the HT-3120c/d Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 234×84×102(mm)
Installation dimension: 207×75(mm)
Length of gooseneck: 420mm
N.W: 1 kg
Support LCD display, discuss, video and voting
IC card/key press sign in option
Chairman with priority button

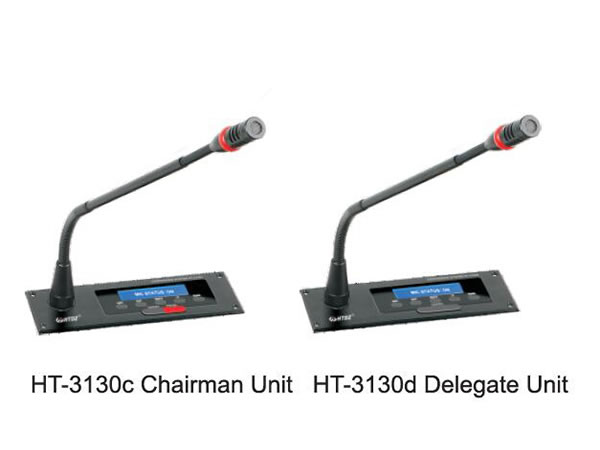

Technical Specifications of the HT-3130c/d Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 157×46×105(mm)
Installation dimension: 133×40(mm)
Length of gooseneck: 420mm
N.W: 0.7kg
Support LCD display discuss, video and voting
Chairman with priority button

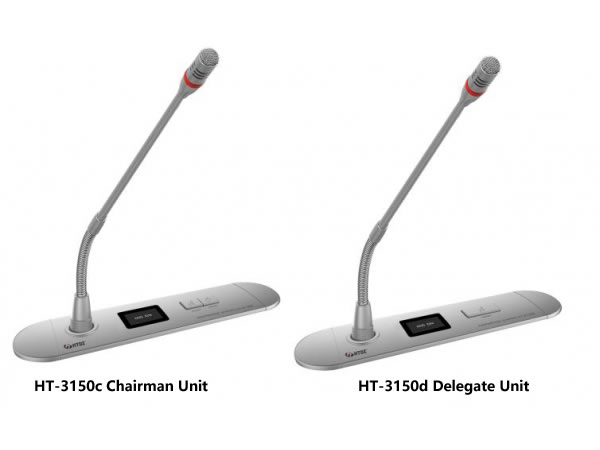

Technical Specifications of the HT-3150c/d Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 197×50×121(mm)
Installation dimension: 147×47(mm)
Length of gooseneck: 420mm
N.W: 0.9kg
Support LCD display, discuss and video
Chairman with priority button

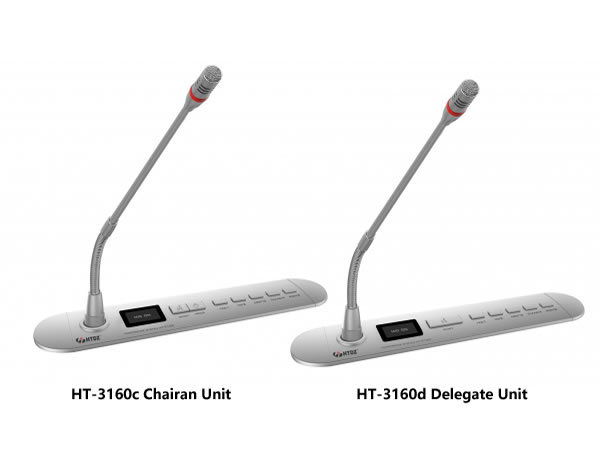

Technical Specifications of the HT-3160c/d Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 246×50×121(mm)
Installation dimension: 197×47(mm)
Length of gooseneck: 420mm
N.W: 0.9kg
Support LCD display, discuss, video and voting
Chairman with priority button

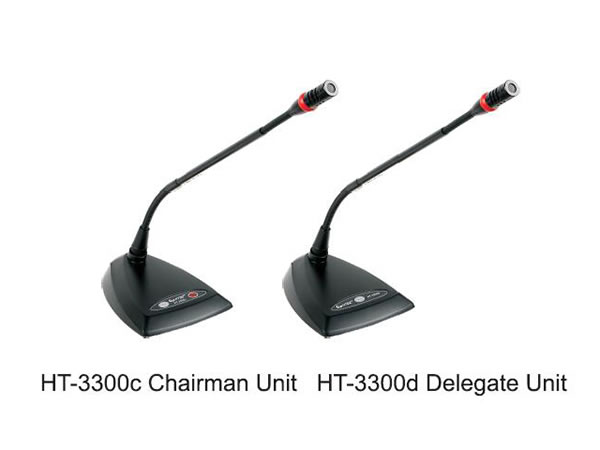

Technical Specifications of the HT-3300c/d Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 160×115×45(mm)
Length of gooseneck: 450mm
N.W: 0.9kg
Support discuss and video
Chairman with priority button
Microphone equipped with 1.5 meter 8P cable

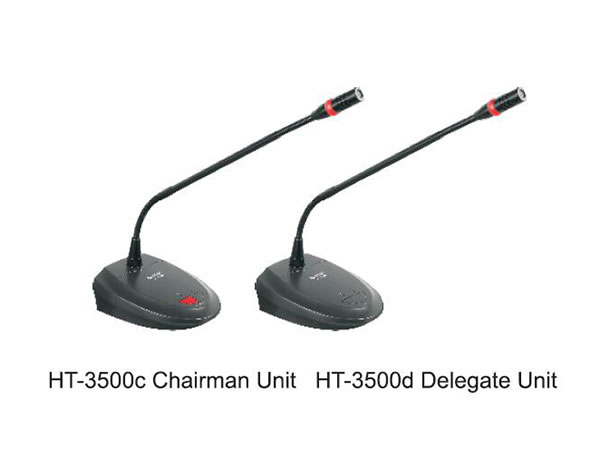

Technical Specifications of the HT-3500c/d Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 150×120×50(mm)
Length of gooseneck: 450mm
N.W: 1kg
Support discuss and video
Chairman with priority button

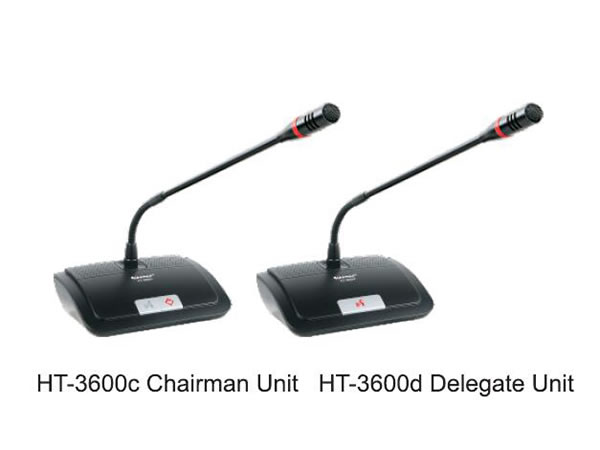

Technical Specifications of the HT-3600c/d Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 207×117×60mm
Length of gooseneck: 420mm
N.W: 0.7kg
Support discuss & video
Chairman with priority button

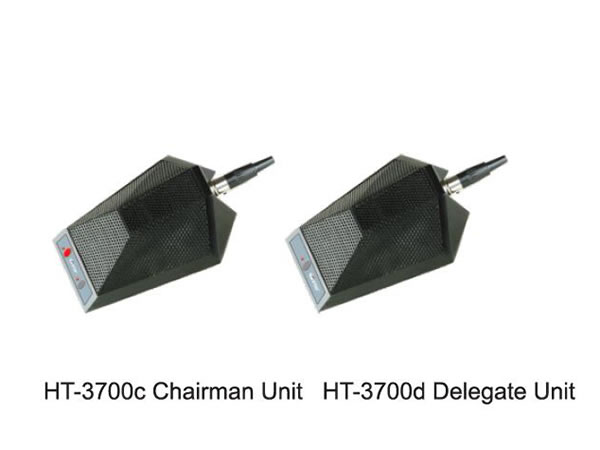

Technical Specifications of the HT-3700c/d Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 69×87×18(mm)
N.W: 120g
Support discuss and video
Chairman with priority button

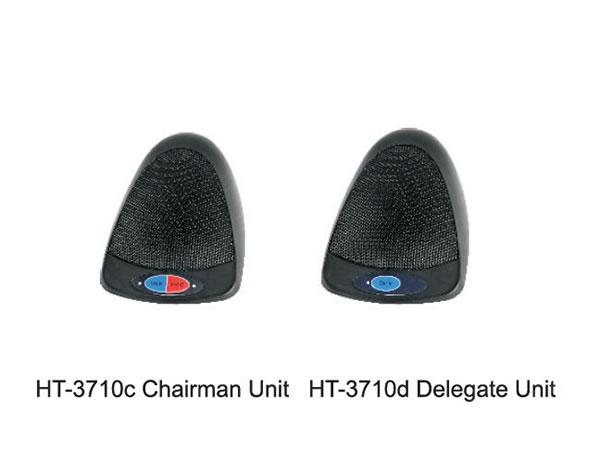

Technical Specifications of the HT-3710c/d Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 69×87×18(mm)
N.W: 120g
Support discuss and video
Chairman with priority button

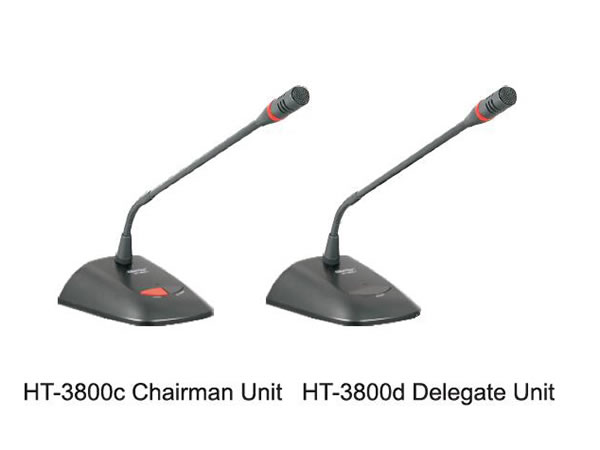

Technical Specifications of the HT-3800c/d Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 130×160×50(mm)
Length of gooseneck: 420mm
N.W: 1kg
Support discuss and video
Chairman with priority button

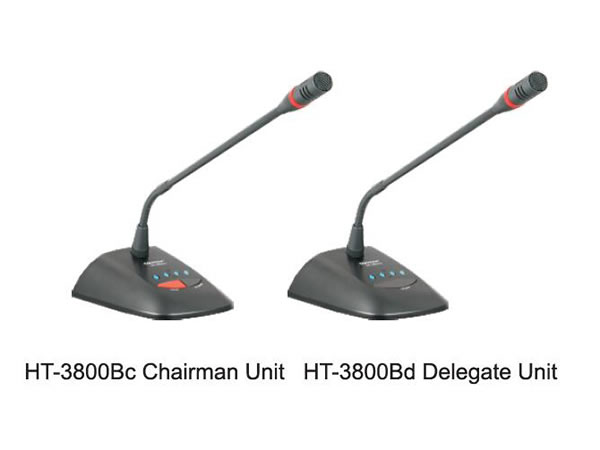

Technical Specifications of the HT-3800Bc/Bd Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 130×160×50(mm)
Length of gooseneck: 420mm
N.W: 1kg
Support discuss, video and voting
Chairman with priority button

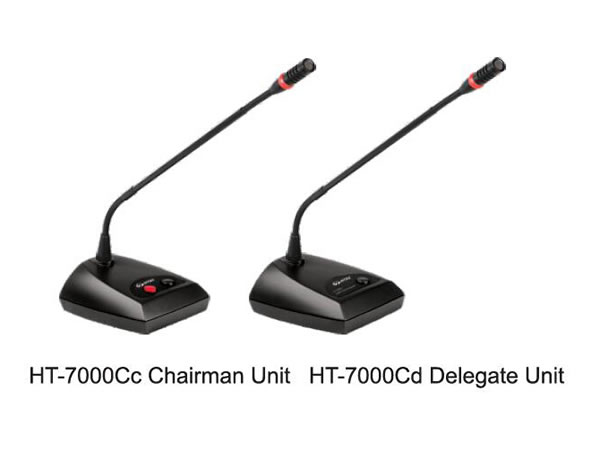

Technical Specifications of the HT-7000Cc/Cd Conference Microphone Unit

Frequency response: 40Hz-16kHz
Sensitivity: -44 dB±2dB
Dimension: 140×110×55(mm)
Length of gooseneck: 420mm
N.W: 0.6kg
Support discuss and video
Chairman with priority button

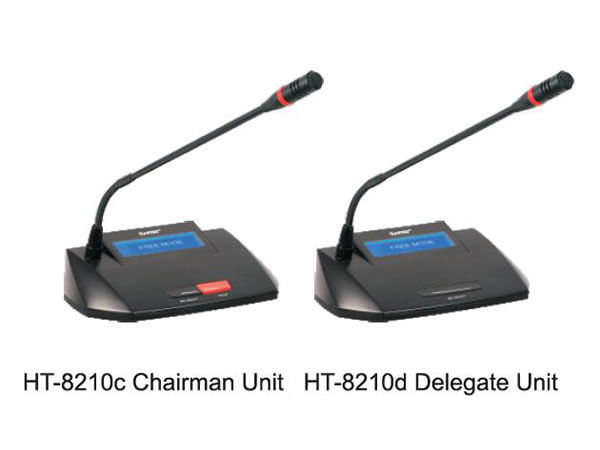

Technical Specifications of the HT-8210c/d Conference Microphone Unit

Frequency response: 40Hz-16 KHz
Sensitivity: -44 dB±2dB
Dimension: 217×120×64mm
Length of gooseneck: 420mm
N.W: 1 kg
Support LCD display, discussing and video
The chairman microphone owns priority button.

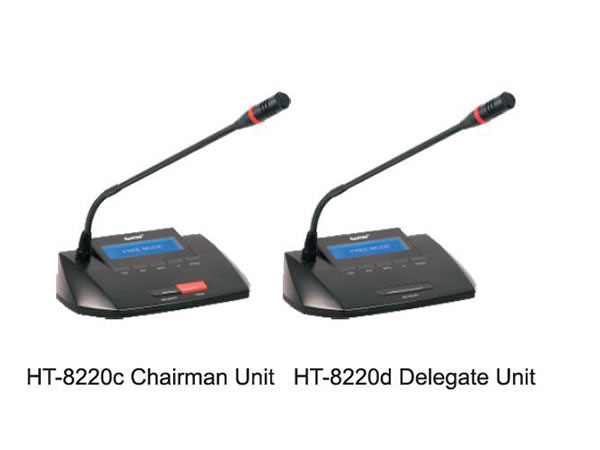

Technical Specifications of the HT-8220c/d Conference Microphone Unit

Frequency response: 40Hz-16 KHz
Sensitivity: -44 dB±2dB
Dimension: 217×120×64mm
Length of gooseneck: 420mm
N.W: 1 kg
Supports LCD display, discuss, video and voting
The chairman microphone has priority button.

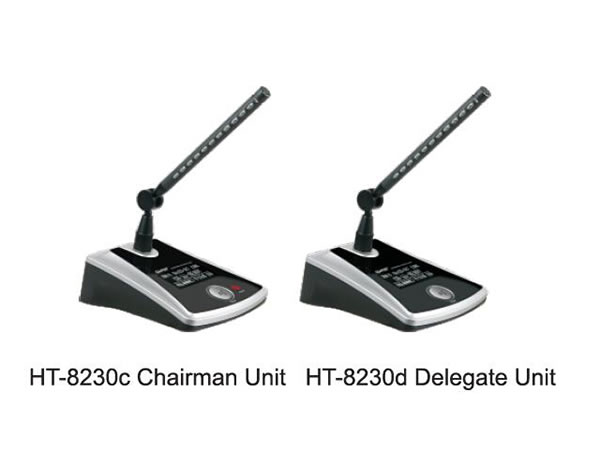

Technical Specifications of the HT-8230c/d Conference Microphone Unit

Frequency response: 40Hz-16 KHz
Sensitivity: -44 dB±2dB
Dimension: 150×123×64mm
Length of gooseneck: 260mm
N.W: 0.9 kg
Supports LCD display, discuss, video and voting
The chairman microphone has priority button

*To get the system compatible details, please download the file.

We are a China-based conference microphone unit manufacturer. We offer various types of products such as digital conference system, true diversity UHF wireless microphone system, and wireless voting system.
