Studio Microphone

  1. Home
  2. Products
  3. Microphone
  4. Studio Microphone

Description
The low noise circuitry of the studio microphone is symmetrical and transformer-less, resulting in exceptional transient response and clean output even under high-output conditions. Used on vocals, drum overheads, woodwind sections, and guitar cabinets as well as on-air announcing, the studio microphone is a microphone of many talents, and is as useful on a live stage and broadcast facility as it is in the recording studio.

Technical Specifications of the Studio Microphone

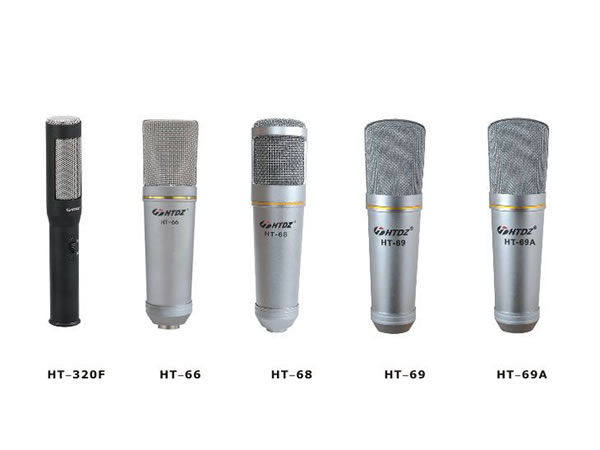

Model No. HT-320F HT-66 HT-68 HT-69 HT-69A
Capsule Type Condenser Condenser Condenser Condenser Condenser
Frequency Response 20Hz-20kHz 20Hz-20kHz 30Hz-18kHz 30Hz-18kHz 30Hz-18kHz
Polar Pattern Hypercardioid Hypercardioid Hypercardioid Uni-Directional Uni-Directional
Output Impedance (Ohm) 75 75 75 75 75
Sensitivity
(±2dB)
-40dB -38dB -40dB -40dB -40dB
Power Supply Phantom Power 48V Phantom Power 48V Phantom Power 48V Phantom Power 48V Phantom Power 48V
N.W. 0.11kg 0.33kg 0.33kg 0.33kg 0.33kg
Sound Pick-up Distance 3m 1m 1m 1m 1m
Dimension (mm) Diameter 30 Length 170 Diameter 45 Length 200 Diameter 45 Length 200 Diameter 45 Length 200 Diameter 45 Length 200
Output Balance Balance Balance Balance Balance

As a professional studio microphone manufacturer and supplier based in China, our company not only provides microphone, but also supplies wireless microphone system, IR language distribution system, conference system, and much more.
