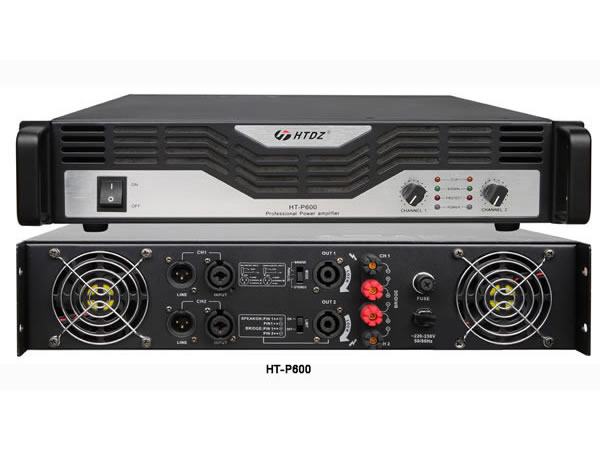

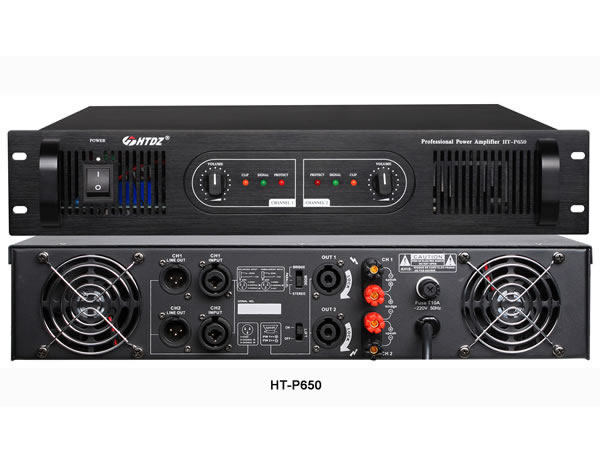

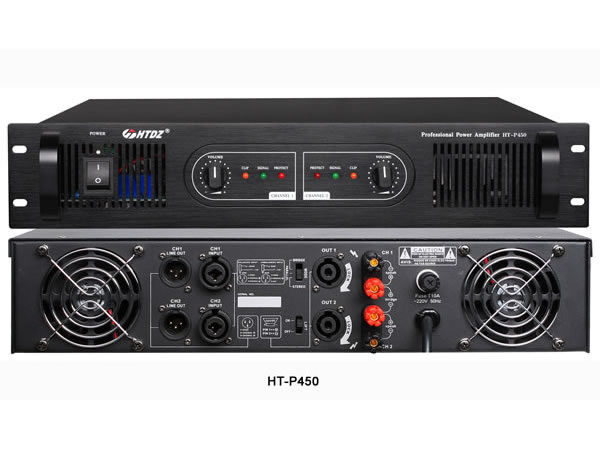

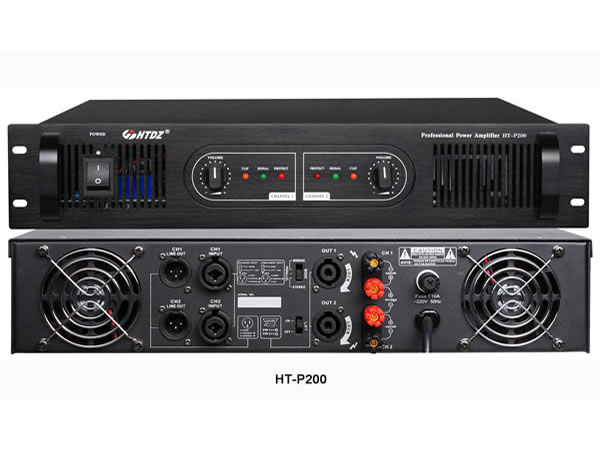

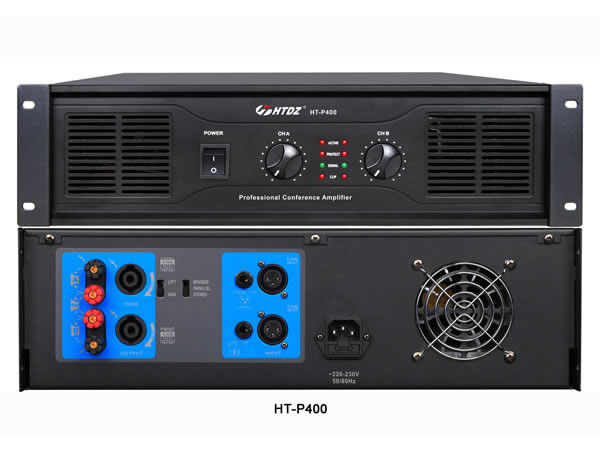

Pro Amplifier

The pro amplifier has a built-in efficient transformer and high capacity filter power supply. This helps ensure lower distortion, greater low frequency control force and clearer voice when the amplifier outputs at full load. The pro amplifier offers three output modes, including stereo, mono and bridge output. The use of time delay relay circuit allows soft start, which helps protect the speaker against electric shock during POWER ON or OFF. The pro amplifier is widely used on many occasions for speech transmission and sound reinforcement.

Technical Specifications of the Pro Amplifier

Model No. HT-P300 HT-P400 HT-P600
Input Power AC 220V 50~60Hz AC 220V 50~60Hz AC 220V 50~60Hz
Input Sensitivity/ Impedance 500mv/20K Ohm 500mv/22K Ohm 500mv/20K Ohm
Output Consumption 8 Ohm 2×300W 2×400W 2×600W
4 Ohm 2×500W 2×600W 2×800W
Bridge 8 Ohm 800W >900W 1500W
Frequency Response 20Hz-20kHz 20Hz-20kHz 20Hz-20kHz
S/N >90dB >90dB >90dB
T.H.D. <0.05% <0.05% <0.05%
Channel Impedance 4~16 Ohm 4~16 Ohm 4~16 Ohm
N.W. 14.2kg 15.8kg 18.5kg
Dimension (L×W×H)mm 430×430×125 430×430×125 430×430×188
Color Black Black Black

TechnicalSpecifications of the Pro Amplifier

Model No. HT-P200 HT-P350 HT-P450 HT-P650
Input sensitivity/impedance 500mv/20KΩ 500mv/20KΩ 500mv/22KΩ 500mv/20KΩ
Output consumption 8Ohm 2 × 200W 2 × 350W 2 × 450W 2 × 650W
4Ohm 2 × 350W 2 × 550W 2 × 650W 2 × 850W
Bridged 8Ohm 600W 850W 1050W 1550W
Frequency response 20Hz-20KHz 20Hz-20KHz 20Hz-20KHz 20Hz-20KHz
S/N ratio >90dB >90dB >90dB >90dB
T.H.D. <0.05% <0.05% <0.05% <0.05%
Channel Crosstalk <-70dB <-70dB <-70dB <-70dB
Output impedance 4~16Ω 4~16Ω 4~16Ω 4~16Ω
N.W. 12kg 13kg 16kg 19kg

As an experienced Pro amplifier manufacturer and supplier based in China, HaiTian Electronic also provides Pro speaker, digital video conference system, discussion conference system, and meeting microphone, and much more.
