Microphone Base

  1. Home
  2. Products
  3. Microphone
  4. Microphone Base

The microphone base is designed to be used on desktop. It is easy and quick to install and remove. With high-tech lines inside, it is suitable for use in the conference, broadcast and communications fields. The microphone base meets strict audio signal transmission requirements and is compatible with various phantom powered microphones.

Features
1. The microphone base is made using one piece casting process.
2. With black reflective surface, it is aesthetically pleasing.
3. The microphone base has a built-in anti-vibration device, which helps avoid noise caused by vibration.

Technical Specifications of the Microphone Base

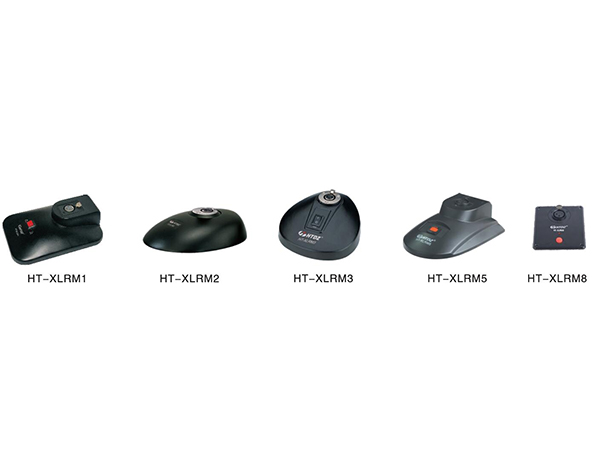

Model No. HT-XLRM1 HT-XLRM2 HT-XLRM3 HT-XLRM5 HT-XLRM8
Power Supply Phantom 48V Phantom 48V Phantom 48V Phantom 48V Phantom 48V
Output Type XLR Male XLR Male XLR Male XLR Male XLR Male
Input Type XLR Female XLR Female XLR Female XLR Female XLR Female
N.W. 1.35kg 1.28kg 0.90kg 0.86kg 0.13kg
Base Dimension (W ×D×H)mm 112×163×29 130×155×35 130×145×40 110×150×33 84×98×30
Compatible Phantom power 48V balance output Mic Phantom power 48V balance output Mic Phantom power 48V balance output Mic Phantom power 48V balance output Mic Phantom power 48V balance output Mic

Our company is a professional microphone manufacturer based in China. We offer a broad range of products, including meeting microphone, microphone base, IR wireless language distribution system, Pro amplifier, and much more.
