HT-8700 Series IR Wireless Conference System

  1. Home
  2. Products
  3. Conference System
  4. IR Wireless Conference System
  5. HT-8700 Series IR Wireless Conference System

The infrared conference system has all the advantages of infrared communication complete with wireless transceiver microphone units. Wireless infrared technology provides the user with greater flexibility whilst configuring the system and freedom of choice when placing microphones. It guarantees conference privacy and protects the system from wiretapping and radio interference. It’s the best wireless conference solutions for small-scale conferences.

With the HT-8700 IR wireless conference system, there is no need to wire the microphone units, which allows easy layout changes in conference rooms. Interference or eavesdropping is not a concern since the system is infrared wireless. Installation can be done quickly and smartly without cumbersome arrangements.

The 8700 IR wireless conference system uses the latest infrared transmission technology to guarantee privacy and excellent immunity to RF interference from mobile phones and RF devices. There is no limited of the IR wireless conference system can be installed in one building

It offers full functions (discuss and video tracking), supports FIFO (1/2/3), limit (1/2/3) and chairman only modes. Up to 127 microphones can be controlled by one system.

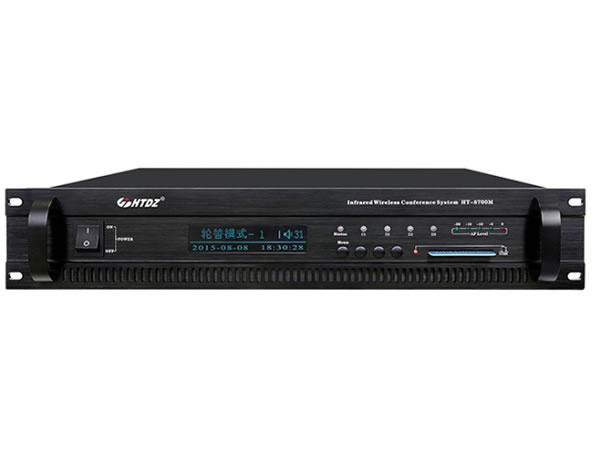

Main Unit HT-8700M

Features
1. Support Mode: Limit (1/2/3), FIFO (1/2/3), chairman only
2. Support video camera auto-track with video processor
3. 160x32 dot matrix LCD display system
4. Two groups of audio output on the interface. Support external audio system.
5. Installation: 19-inch frame
6. Designed accordance to UL and CE standards
7. If main unit turns off, microphone will shut off within 60 seconds.

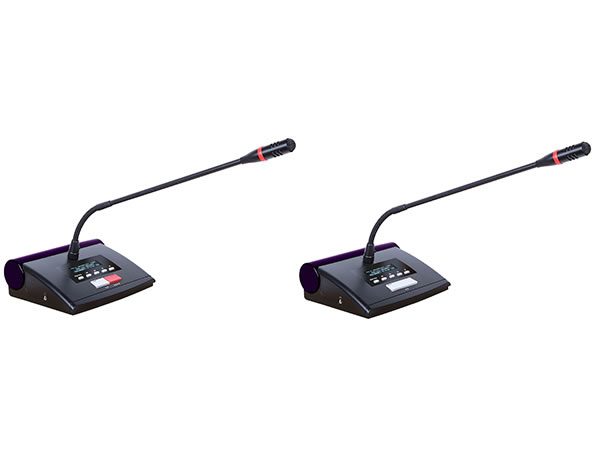

Microphone Unit HT-8700c/d

Features
1. The portable table is movable and the microphone pipe can be pulled out. Extended pipe is optional.
2. The capacitor microphone is equipped with windshield cover.
3. LCD display of microphone ID, signal level, battery level, microphone state, control channel, etc.
4. Equipped with 5 function keys to support microphone ID, LCD contrast, language setting and service calling functions.
5. The microphone will automatically power off the power in 60 seconds to save the electric enery if system communication is in error.
6. LCD will display “IR Signal Weak/Error” if the IR signal is weak when the microphone works.

Besides the functions of a delegate unit, chairman unit also has the following functions:
1. Chairman microphone can be turned on any time.
2. In one system, only one chairman microphone is support whose ID number should be 1.
3. Priority function: chairman can turn off delegate microphones any time.
3. Chairman only mode: Delegate microphone can not be turned on again after the chairman presses the priority button. The chairman need quit this mode first, and then delegate microphone can be turned on again.

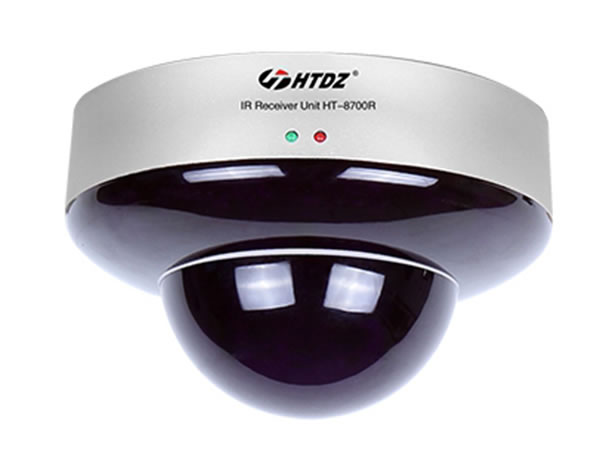

Transceiver Unit HT-8700RT

Features
1. The transceiver unit of the IR wireless conference system adopts mounting hook for easy installation.
2. It offers a wide-angle, the receiving range is approximately 150 degrees.
3. The signal gain is more than 35dBM.
4. It uses low consumption electro circuit.
5. It can be installed on the wall or ceiling (option).

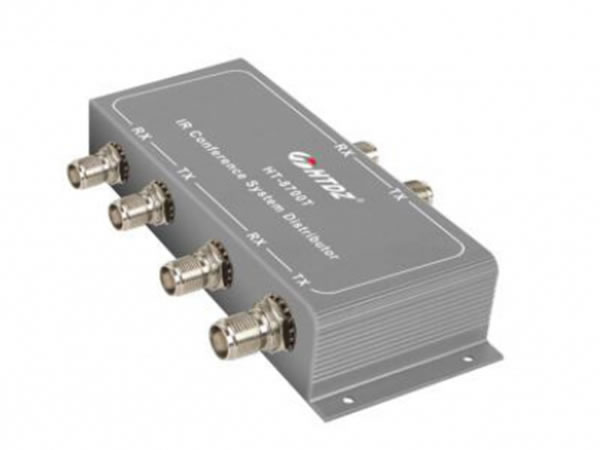

Distributor Unit HT-8700T

Features
1. It adopts impedance balancing branch connector (2 groups of input, 1 group of output)
2. Low insertion loss computation
3. Perfect plating surface treatment with excellent shielded function

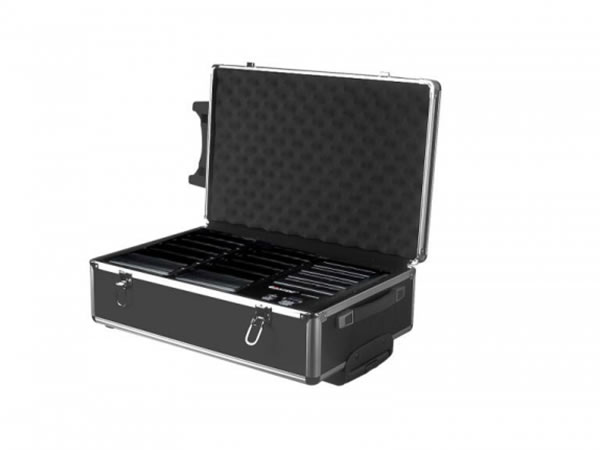

Battery Charger HT-8700CG

Features
1. The battery charger of the IR wireless conference system has an input voltage of AC110V/240V, 50Hz~60Hz.
2. It charges 10 PCS of LIP battery every time.
3. It offers intelligent charging management electro circuit to protect the LIP battery.
4. It is equipped with an extendible handle and pulley, so it is easy to move.

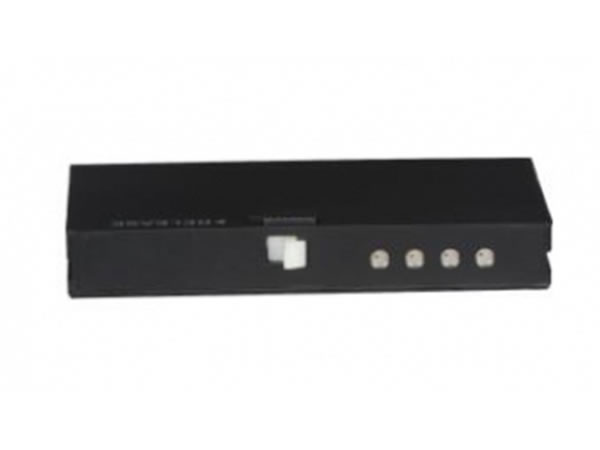

LIP Battery HT-8700B

Features
1. The LIP battery of the IR wireless conference system offers excellent safety performance, light weight and high capacity ratio.
2. It has improved safety and is more resistant to overcharge with lower possibility of electrolyte leakage.
3. It offers high capability. It nearly doubles the capacity with half the weight of NiCad or NiMH battery packs.
4. It is easy to install.

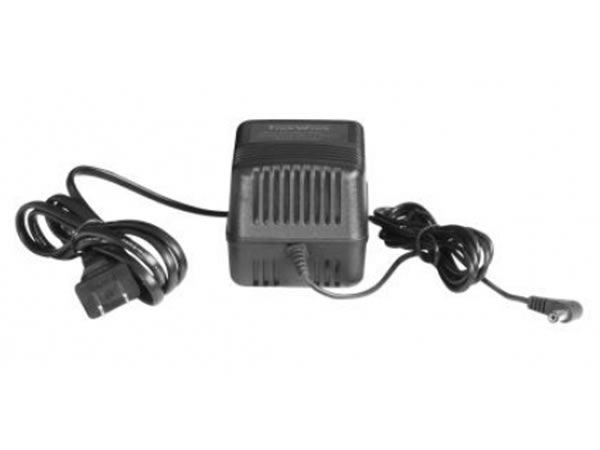

AC Power Adapter HT-8700A

This AC power adapter can charge LIP battery directly with microphone unit.


HaiTian Electronic is a professional IR wireless conference system manufacturer based in China. We also offer digital video conference system, IR wireless language distribution system, meeting microphone, and so on.
