With the HT-8510/HT-8610 IR wireless conference system, there is no need to wire the microphone units, which allows easy layout changes in conference rooms. Interference or eavesdropping is not a concern since the system is infrared wireless. Installation can be done quickly and smartly without cumbersome arrangements.

The 8510/8610 IR wireless conference system uses the latest infrared transmission technology to guarantee privacy and excellent immunity to RF interference from mobile phones and RF devices. 14 sets of the IR wireless conference system can be installed in one building without interface.

It offers full functions (discuss, video tracking and voting), support FIFO (1/2/3), Limit (1/2/3) and chairman only mode, microphones in one system up to 128 units.

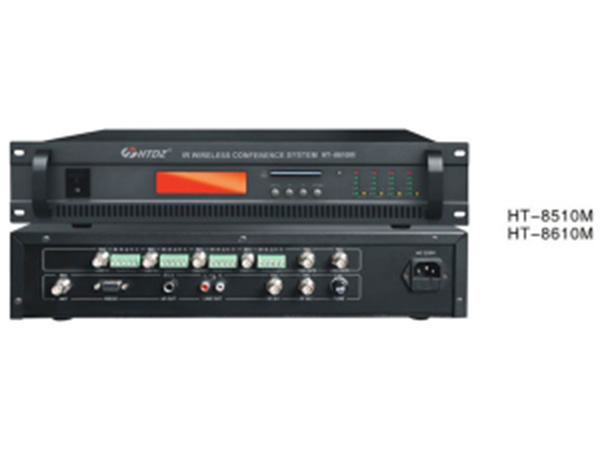

Main Unit HT-8510M/HT-8610M

Features
1. The main unit of the IR wireless conference system has a built-in video and voting processor to support video camera auto-track and voting.
2. It offers 160x32 dot matrix LCD display system information.
3. It has two group audio output interface to support external audio system.
4. If the main unit power is turned off, the microphone will shut off the power within 60 seconds.

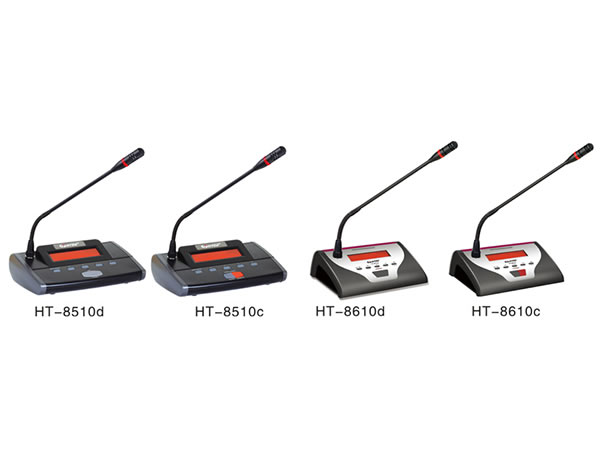

Microphone Unit HT-8510c/d, HT-8610c/d

Features
1. It offers LCD color red/blue (option).
2. It supports discussion, voting and video camera auto-track function.
3. It has LCD display microphone ID, signal level, battery level, microphone state, control channel, etc.
4. It is equipped with microphone on/off key and indicator.
5. The microphone unit of the IR wireless conference system is equipped with 5 function keys to set microphone id, control channel, LCD contrast and light time.
6. It offers Auto-Close: Microphone will turn off automatically if there is no action of this microphone in 99 seconds. (Option)
7. The microphone will shut off the power in 60 seconds to save battery power if system communication is in error.
8. It offers priority function: Chairman can turn off a delegate microphone at any time.
9. It offers Chairman only mode: Delegate microphone cannot be turned on again after the chairman microphone presses the priority button.

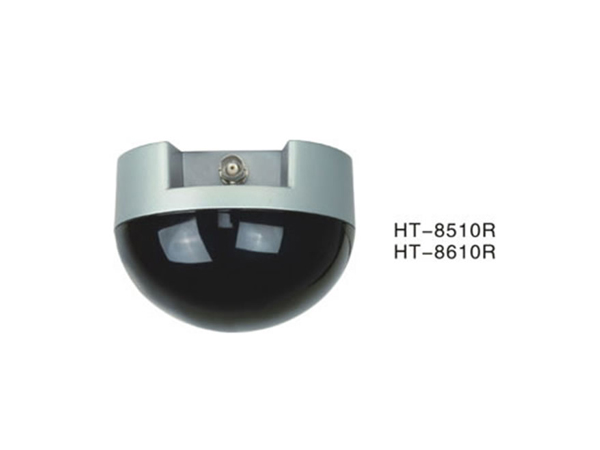

Receiver Unit HT-8510R/HT-8610R

Features
1. The receiver unit of the IR wireless conference system uses mounting hook installation and is easy to install.
2. It offers a wide-angle, receiving range is approximately 150 degrees.
3. It offers signal gain more than 35dBM.
4. It uses low consumption electro circuit.
5. It can be installed on the wall or ceiling (option).

Distributor Unit HT-8510T/HT-8610T

Features
1. The distributor unit of the IR wireless conference system uses impedance balancing branch connector (2 input, 1 output).
2. It offers low insertion loss computation.
3. It offers perfect plating surface treatment with excellent shielded function.

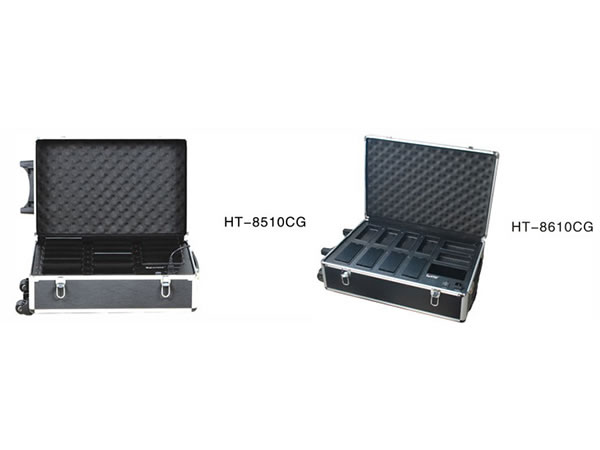

Battery Charger HT-8510CG/HT-8610CG

Features
1. It has an input voltage of AC110V/240V, 50Hz~60Hz.
2. It offers charges 16 PCS (HT-8500CG)/8 PCS (HT-8600CG) of LIP battery per charging.
3. It offers intelligent charging management electro circuit to protect the LIP battery.
4. It is equipped with an extendible handle and pulley, and is easy to move.

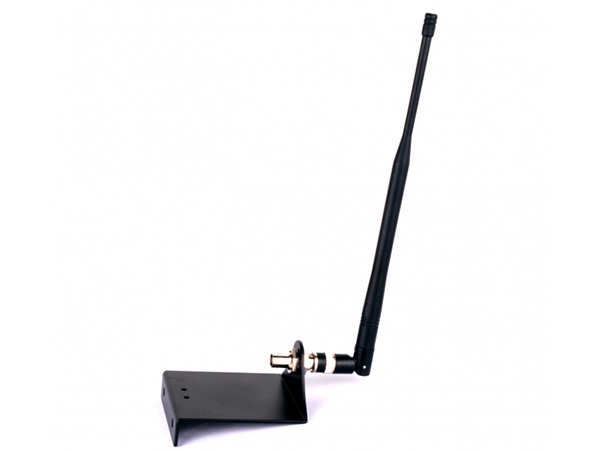

External Antenna HT-8510AT/HT-8610AT

If the distance between the IR main unit and microphone is not far and there is no obstruction, the antenna can be connected to the "ANT" interface of the IR main unit rear panel directly. If the distance is far or there is some obstruction between them, please connect the external antenna to IR main unit.

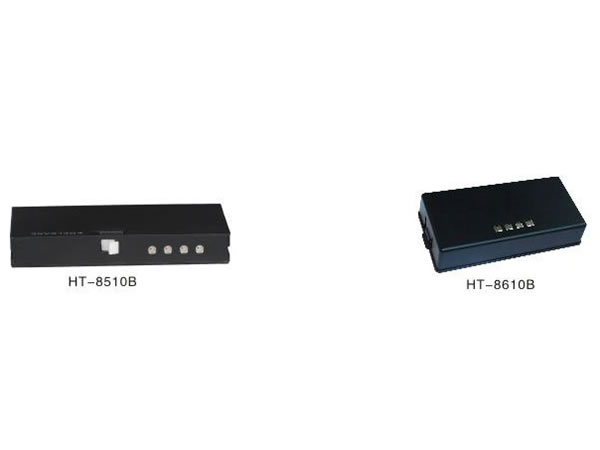

LIP Battery HT-8510B/HT-8610B

Features
1. The LIP battery of the IR wireless conference system offers excellent safety performance, light weight and high capacity ratio.
2. It has improved safety and is more resistant to overcharge; less change for electrolyte leakage.
3. It offers high capability; nearly double the capacity with half the weight of NiCad or NiMH battery packs.
4. It is easy to install.

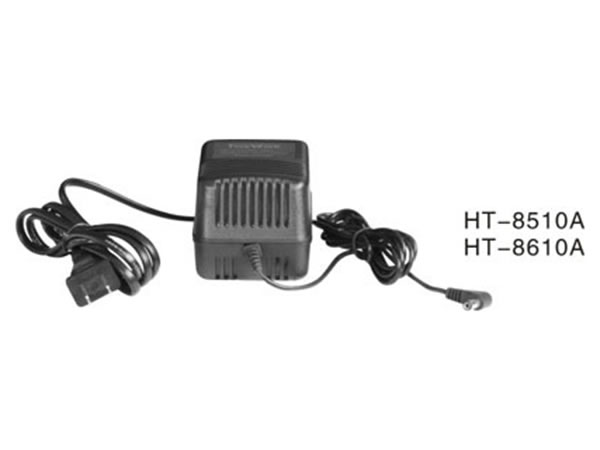

AC Power Adapter HT-8510A/HT-8610A

This AC power adapter can charge LIP battery directly with microphone unit.


As a specialized IR wireless conference system manufacturer based in China, HaiTian Electronic also provides digital conference system, wireless voting system, video tracking system, and so on.
